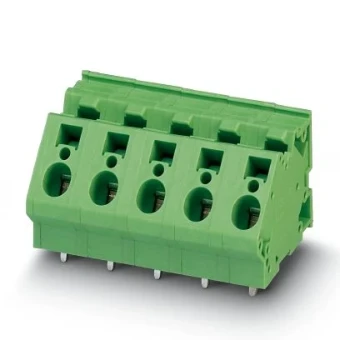

Printed circuit board terminal Phoenix Contact
Add to selection
General information
Ordercode YESSS
6022-4686
Product code
1907539
EAN code
4017918193904
Product group
Printed circuit board terminal
Brand
Phoenix Contact
Type
ZFKDS 4-10
PCB terminal block
PCB terminal block
Product description
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: ZFKDS(A) 4, pitch: 10 mm, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 4.6 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
Product specifications
Height
27.6 mm
Connection type conductor
Spring clamp connection
Connectable conductor cross section solid-core
0.2 - 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2 - 4 mm²
Material insulation body
Other
Operating temperature
-40 - 100 °C
Type of PCB fastening
Connecting contact
