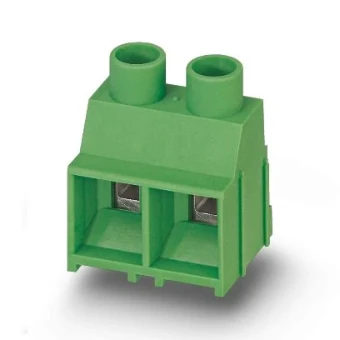

Printed circuit board terminal Phoenix Contact
Add to selection
General information
Ordercode YESSS
6022-4683
Product code
1907429
EAN code
4017918603953
Product group
Printed circuit board terminal
Brand
Phoenix Contact
Type
MKDS 5 HV/ 3-9,52-Z
PCB terminal block
PCB terminal block
Product description
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 1000 V, nominal cross section: 4 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, product range: MKDS 5 HV, pitch: 9.52 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Zigzag pinning M, Solder pin [P]: 5.2 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions! If used purely as 2-pos., we recommend version MKDSV 5 HV with anti-rotation pins.
Product specifications
Height
26.7 mm
Connection type conductor
Screw connection
Connectable conductor cross section solid-core
0.2 - 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2 - 4 mm²
Connectable conductor cross section multi-wired
0.2 - 1.5 mm²
Material insulation body
Other
Type of PCB fastening
Connecting contact
