Panel feed-through terminal block Phoenix Contact
Add to selection
General information
Ordercode YESSS
6021-6648
Product code
1708754
EAN code
4055626020396
Product group
Panel feed-through terminal block
Brand
Phoenix Contact
Panel feed-through terminal block
Panel feed-through terminal block
Product description

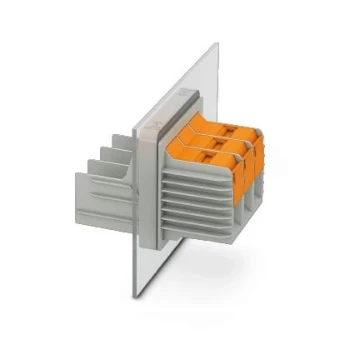

Panel feed-through terminal block, connection method: T-LOX knee lever connection, Cable lug connection, number of positions: 3, load current: 232 A, connection direction of the conductor to plug-in direction: 0 °, width: 97 mm, color: gray
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
25 - 95 mm²
Material insulation body
Other
Connectable conductor cross section fine-strand with cable end sleeve
25 - 95 mm²
Connectable conductor cross section solid-core
25 - 95 mm²
Rated voltage
1000 V
Number of poles
3
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
97 mm
Colour
Grey
