General information
Motoranschlussleitung
Motoranschlussleitung
Ordercode YESSS
6134-1268
Product code
700700/100
EAN code
4044777768837
Product group
Power cable >= 1 kV, for permanent installation
Brand
ÖLFLEX®
Type

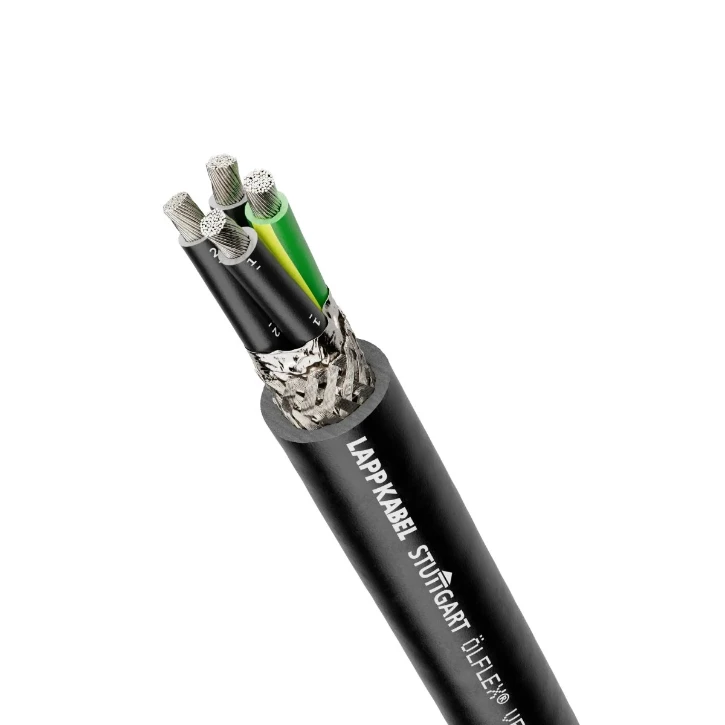

ÖLFLEX® VFD 2XL 4G1.5 16/4C 100 M
Product description
Motoranschlussleitung Motoranschlussleitung; 4G1.5; U0/U: 0,6/1 kV; TPE; Geschirmt; UL listed; flexibel
Product specifications
Conductor material
Copper
Conductor surface
Tinned
Nominal cross section conductor
1.5 mm²
AWG size
16
Conductor category
Class 5 = flexible
Number of cores
4
Material core insulation
Other
Specification core insulation
Crosslinked polyethylene (XLPE)
Core identification
Numbers
Screen
Yes
Material outer sheath
Other
Specification material outer sheath
Other
Colour outer sheath
Black
Reaction-to-fire according to EN 13501-6: Smoke production
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Halogen free according to EN IEC 60754-2
No
Low smoke according to EN IEC 61034-2
No
Circuit integrity
None
Oil resistant (according to IEC 60811-404)
No
Outer diameter approximate
12.9 mm
Min. permitted bending radius, stationary application/permanent installation
96.8 mm
Permitted cable outer temperature after assembling without vibration
-40 - 105 °C
Nominal voltage U0
0.6 kV
Nominal voltage U
1 kV
Core identification according to HD 308 S2
No
With protective conductor
Yes
Cable geometry
Round
Weight
238 kg/km
Certified for shipboard application
No
Circuit integrity according to BS 6387 CWZ
No
Circuit integrity according to BS 8434-2
No
Circuit integrity according to BS 8491
No
