General information

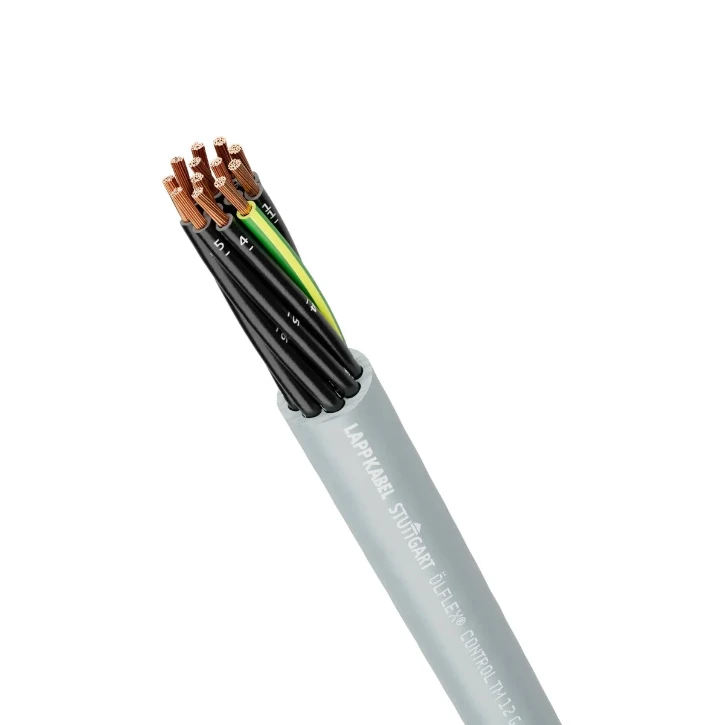

Anschluss- und Steuerleitung
Anschluss- und Steuerleitung
Ordercode YESSS
6132-8234
Product code
281818/305
EAN code
4044774575629
Product group
Power cable < 1 kV, for moving application
Brand
ÖLFLEX®
Type
ÖLFLEX® CONTROL TM 18G1 18/18C 305 M
Product description
Anschluss- und Steuerleitung Anschluss- und Steuerleitung; 18G1; U0/U: 0,6/1 kV; Aderidentifizierung: Nummern; UL listed; flexibel
Product specifications
Nominal cross section conductor
1 mm²
AWG size
Other
Conductor category
Class 5 = flexible
Number of cores
18
Material core insulation
Polyvinyl chloride (PVC)
Specification core insulation
Other
Core identification
Numbers
Material outer sheath
Other
Specification material outer sheath
Other
Colour outer sheath
Grey
Reaction-to-fire according to EN 13501-6: Class
None
Reaction-to-fire according to EN 13501-6: Smoke production
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Flame retardant
According to IEC/EN 60332-3-24
Oil resistant according to EN IEC 60811-404
No
Outer diameter approximate
14.7 mm
Min. permitted bending radius, moving application/free movement
61.8 mm
Min. permitted bending radius, stationary application/permanent installation
61.8 mm
Permitted cable outer temperature after assembling without vibration
-25 - 90 °C
Nominal voltage U0
0.6 V
Nominal voltage U
1 V
Conductor material
Copper
Conductor surface
Bare
Core identification according to HD 308 S2
No
With protective conductor
Yes
Cable geometry
Round
Weight
365 kg/km
