General information
Anschluss- und Steuerleitung
Anschluss- und Steuerleitung
Ordercode YESSS
6134-3845
Product code
1123306/500
EAN code
4044774600055
Product group
Power cable < 1 kV, for moving application
Brand
ÖLFLEX®
Type

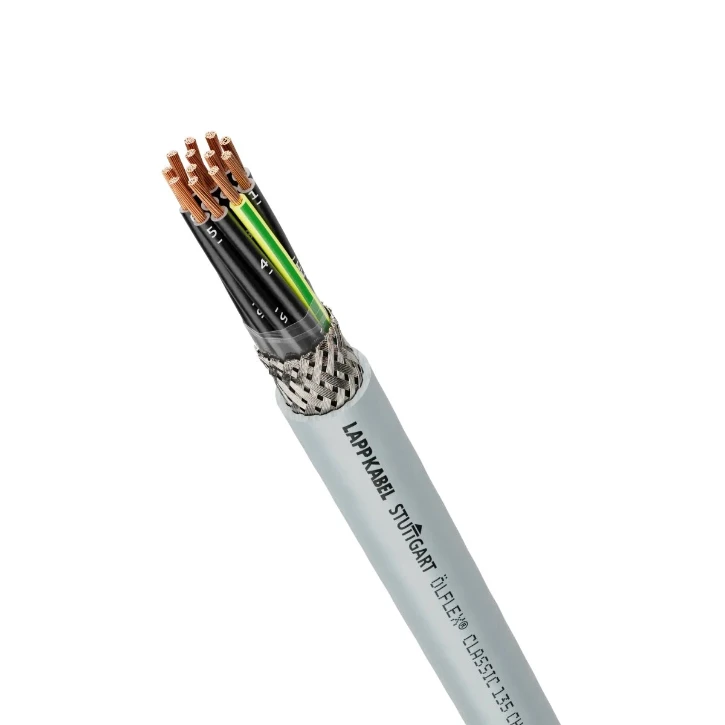

ÖLFLEX® CLASSIC 135 CH 2X1,5 500 M
Product description
Anschluss- und Steuerleitung Anschluss- und Steuerleitung; 2X1.5; U0/U: 300/500 V; HFFR; Aderidentifizierung: Nummern; Geschirmt; UL recognized; flexibel
Product specifications
Nominal cross section conductor
1.5 mm²
AWG size
16
Conductor category
Class 5 = flexible
Number of cores
2
Material core insulation
Other
Specification core insulation
Other
Core identification
Numbers
Screen over stranding
Braiding
Material outer sheath
Other
Specification material outer sheath
Other
Colour outer sheath
Grey
Reaction-to-fire according to EN 13501-6: Class
Dca
Reaction-to-fire according to EN 13501-6: Smoke production
s1b
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
a1
Flame retardant
According to IEC/EN 60332-3-22
Oil resistant according to EN IEC 60811-404
No
Outer diameter approximate
7.2 mm
Min. permitted bending radius, moving application/free movement
144 mm
Min. permitted bending radius, stationary application/permanent installation
43.2 mm
Permitted cable outer temperature after assembling without vibration
-40 - 80 °C
Nominal voltage U0
300 V
Nominal voltage U
500 V
Conductor material
Copper
Conductor surface
Bare
Core identification according to HD 308 S2
No
With protective conductor
No
Cable geometry
Round
Weight
91 kg/km
