Multi level installation terminal block WAGO
Add to selection
General information
Ordercode YESSS
0558-2966
Product code
2003-7641
EAN code
4044918925587
Product group
Multi level installation terminal block
Brand
WAGO

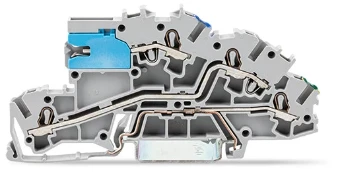

Multilevel installation terminal block with N-disconnect slide link NT
Multilevel installation terminal block with N-disconnect slide link NT
Product description
Multilevel installation terminal block with operating slots 2.5 mm² with N-disconnect slide link NT/L/PE Push-in CAGE CLAMP® 2,50 mm² gray
Product specifications
Material insulation body
Thermoplastic
Mounting method
DIN rail (top hat rail) 35 mm
Rated current In
32 A
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Rated voltage
250 V
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of potentials
3
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
Yes
Basic colour
Grey
PE-function
Yes
With N-disconnect slide
Yes
N function possible
Yes
Width
5.2 mm
Height
96 mm
Depth
42.3 mm
