Multi level installation terminal block WAGO
Add to selection
General information
Ordercode YESSS
6045-1852
Product code
2203-7545
EAN code
4066966121995
Product group
Multi level installation terminal block
Brand
WAGO

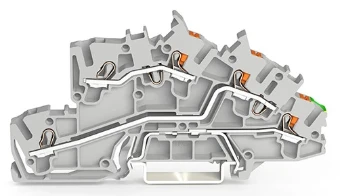

Multilevel installation terminal block L/L/PE green-yellow lower deck
Multilevel installation terminal block L/L/PE green-yellow lower deck
Product description
Multilevel installation terminal block with operating slots and push-button 2.5 mm² L/L/PE green-yellow lower deck Push-in CAGE CLAMP® 2,50 mm²
Product specifications
Material insulation body
Thermoplastic
Mounting method
DIN rail (top hat rail) 35 mm
Rated current In
31 A
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Rated voltage
400 V
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of potentials
3
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
Yes
Basic colour
Grey
PE-function
Yes
With N-disconnect slide
No
N function possible
No
Width
5.2 mm
Height
95.6 mm
Depth
46.6 mm
