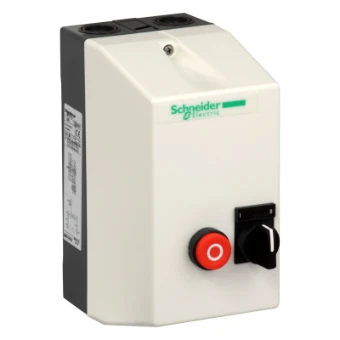

Motor starter/Motor starter combination Schneider Electric

Add to selection
General information
Ordercode YESSS
6033-5305
Product code
LE2D09P7
EAN code
3389110632231
Product group
Motor starter/Motor starter combination
Brand
Schneider Electric
Product specifications
Type of motor starter
Reversing starter
Rated control supply voltage at AC 50 Hz
230 - 230 V
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP)
IP65
Rated control supply voltage at AC 60 Hz
230 - 230 V
Rated operation power at AC-3, 230 V, 3-phase
2.2 kW
Voltage type for actuating
AC
Rated operation power at AC-3, 400 V
4 kW
Rated power, 460 V, 60 Hz, 3-phase
4 kW
Rated power, 575 V, 60 Hz, 3-phase
5.5 kW
Rated operation current Ie
9 A
With short-circuit release
No
Rated operation current at AC-3, 400 V
9 A
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Ambient temperature, upper operating limit
40 °C
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Rail mounting possible
No
With transformer
No
Number of command positions
2
Supporting protocol for TCP/IP
No
Suitable for emergency stop
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Number of indicator lights
0
Supporting protocol for INTERBUS
No
External reset possible
Yes
Supporting protocol for ASI
No
With fuse
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Width
101 mm
Height
201 mm
Depth
160 mm
more specifications
