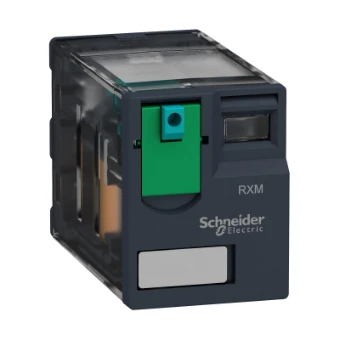

Switching relay Schneider Electric Zelio Relay

Add to selection
General information
Ordercode YESSS
6035-2748
Product code
RXM3AB1FD
EAN code
3389119403597
Product group
Switching relay
Brand
Schneider Electric
Serie
Zelio Relay
Type
RXM3AB1FD
Miniaturrelais RXM, 3 W, 10 A, 110VDC Miniaturrelais RXM, 3 W, 10 A, 110VDC
Product description

Zelio Relay. Miniaturrelais RXM als Komponente. Anzahl Kontakte 3, Ausführung Relaiswechsler, Kontaktbelastbarkeit je 10 A. Spulen-Steuerspannung 110 VDC. Mechanische Stellungsanzeige ja, LED-Anzeige nein. Prüftaste zum Testen der Kontakte ja, Prüfhebel zur dauerhaften Umschaltung für Testzwecke ja, Bedienung werkzeuglos. Montage im separaten Stecksockel.

Product specifications
Voltage type for actuating
DC
Drive, polarization
Polarity free
Nominal current
10 A
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
3
With detachable clamps
Yes
Type of electric connection
Plug-in connection
Rated control supply voltage DC
110 - 110 V
Drive, switching attitude
Mono stable
With forced-guided contacts
Yes
Type of switch contact
Other
Complete with socket
No
Degree of protection (IP)
IP40
With LED indication
No
Width
21 mm
Height
27 mm
Depth
55 mm
Material of contact surface
Other
Material of contact insert
Other
Material contact
Other
