General information

Bewegungsmelder 130° Wand-, Decken- und. weiß IP54 20m 1Kanal Bewegungsmelder 130° Wand-, Decken- und. weiß IP54 20m 1Kanal
Ordercode YESSS
0536-5691
Product code
93321
EAN code
4007529933211
Product group
Movement sensor/presence detector complete
Brand
LUXOMAT
Serie
Bewegungsmelder
Type
RC-plus next N 130 weiß

Product description

Bewegungsmelder mit 130 Grad Erfassungsbereich und Unterkriechschutz, Mechanische Reichweiteneinstellung, Unterschiedliche Nachlaufzeit in Abhängigkeit von der Bewegungsrichtung, Unterbrechungsfreie Parallelschaltungserkennung von mehreren Meldern., Manuelles Schalten über Taster möglich, Beweglicher Kugelkopf, Sofortige Inbetriebnahme mit den werkseitigen Einstellungen möglich, Weitere Funktionen über optionale Fernbedienung einstellbar, Schaltung im Nulldurchgang, Sockel kompatibel zum RC-plus (next) und Vario, Einfache Montage durch Stecksockel, Wand-, Decken-, Eckmontage, Werkseinstellung 3 min und 20 Lux

Product specifications

Model
Movement sensor
Colour
White
Degree of protection (IP)
IP54
Max. reach frontally
6 m
Max. reach sideways
20 m
Max. switching power
3000 W
Creep-under protection
Yes
Response value sensitivity adjustable
Yes
Remote operation
Yes
Constant light control
No
HVAC-control
No
Animal zone
Yes
Networkable
No
Optimum mounting height
2.5 m
Max. presence range
18 m²
Staircase light controller
No
Bridging switch
No
With remote control
No
Diameter reach on floor
36 m
Suitable for wireless transmission
No
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
Yes
Dim function with dimmer basic element
No
Mounting method
Surface mounted
Suitable for ceiling mounting
Yes
Material
Plastic
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
RAL-number (similar)
9010
Transparent
No
Min. switch-on time
15 s
Voltage type
AC
Anti-bacterial treatment
No
Max. duty cycle
16 min
Response value luminosity
2 - 500 lx
Switch-off delay
0 s
Switch-on delay
0 s
Max. starting current
165 A
Substation input
No
Impact strength
IK03
Swivel range sensor, horizontal
-45 - 45 °
Frequency
50 - 60 Hz
Swivel range sensor, vertical
-20 - 20 °
With alarm function
Yes
Suitable for C-load
No
Number of switching zones
450
Min. starting current
0 A
Width
71 mm
Height
85 mm
Depth
121 mm
Nominal voltage
110 - 240 V
Max. switching power LED
800 W
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Background monitoring
No
With acoustic sensor
No
With connection cable
No
Connection cable length
0 mm
Ceiling built-in mounting without installation box
No
Compatible with Casambi
No
Movement sensor/presence detector technology
Passive infrared
Ambient temperature
-25 - 50 °C
Manufacturer's website

Recommended products

Accessories/spare parts for movement sensor LUXOMAT Zubehör, Sockel, Filter

Zubehör RC-Loeschglied weiß

€ 17,09 /

€ 17,09 Gross price

0 | 0068-8354
Accessories/spare parts for movement sensor LUXOMAT Zubehör, Sockel, Filter

Zubehör Mini-RC-Loeschglied schwarz

€ 17,09 /

€ 17,09 Gross price

0 | 6030-1554

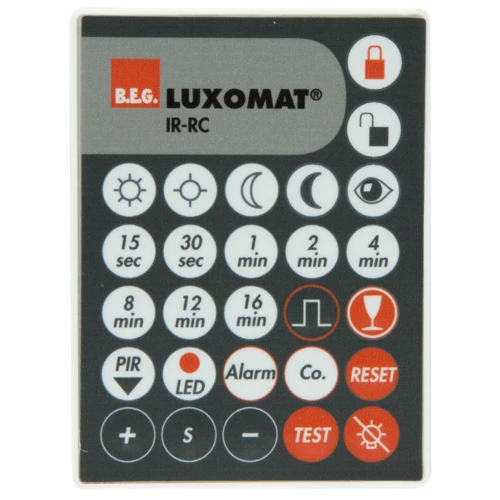

Accessories/spare parts for movement sensor LUXOMAT Fernbedienungen
