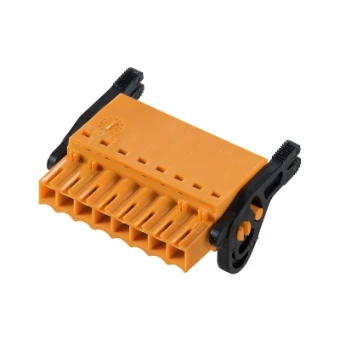

Cable connector WEIDMÜLLER OMNIMATE Signal - Serie BL/SL 3.50
Add to selection
General information
Ordercode YESSS
6080-4686
Product code
2459740000
EAN code
4050118475159
Product group
Cable connector
Brand
WEIDMÜLLER
Serie
OMNIMATE Signal - Serie BL/SL 3.50
Type
BLF 3.50/08/180LR SN OR BX
Leiterplattensteckverbinder (Leiteranschluss), 3.50 mm, Polzahl: 8, PUSH IN mit Betätigungselement,
Leiterplattensteckverbinder (Leiteranschluss), 3.50 mm, Polzahl: 8, PUSH IN mit Betätigungselement, Zugfederanschluss
Product description
Steckbarer Leiterplatten-Anschluss mit innovativer Anschlusstechnologie für eine sichere und intuitive Handhabung.
Product specifications
Type of connection
Flexible PCB-connector
Contact type
Bus
Number of poles
8
Modular spacing contacts
3.5 mm
Modular spacing connections
3.5 mm
Angle contact/conductor connection
180° (horizontal)
Rated current In
17.1 A
Rated voltage
160 V
Rated surge voltage
2.5 kV
Overvoltage category
III
Pollution degree
2
Connectable conductor cross section fine-strand without cable end sleeve
0.14 - 1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 1 mm²
Connectable conductor cross section solid-core
0.14 - 1.5 mm²
Type of electric connection
Push-in clamp connection
Connectable cable type
Tubular cable
Material of contact surface
Tin
Material contact
Copper
Material insulation body
Polyamide (PA)
Housing material
Plastic
Coating housing
Other
Housing colour
Orange
Operating temperature
-50 - 120 °C
Degree of protection (IP), mounted
IP20
