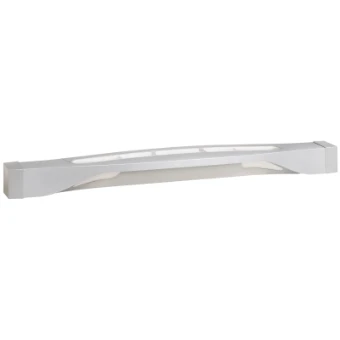

Batten luminaire Legrand
Add to selection
General information
Ordercode YESSS
0432-5956
Product code
078329
EAN code
3245060783297
Product group
Batten luminaire
Brand
Legrand
Product description
Applique à LED - 0,97m éclairage : lecture + ambiance
Product specifications
Lamp type
LED not exchangeable
Type of control gear
Electronic ballast
Length
970 mm
Suitable for number of light sources
2
Lamp holder
Other
With control gear
No
Dimming 0-10 V
No
Suitable for emergency lighting
No
Voltage type
AC
Nominal voltage
207 - 253 V
Dimming 1-10 V
No
Dimming DALI
No
Electrical connection with connector system
Yes
Material
Aluminium
Nominal current
115 - 140 mA
Dimming DMX
No
Housing colour
Grey
Dimming DSI
No
Dimming potentiometer (integrated)
No
With switch
No
Width
133 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Protection class according to IEC 61140
I
Dimming mains voltage modulation
No
Degree of protection (IP)
IP20
Dimming phase cut-off (trailing edge)
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
Yes
Dimming RF
No
Covering of the luminaire with thermally insulating material possible
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With light source
Yes
Colour of light
White
Light distributor
Diffuser lens/optic/panel
Colour temperature
6500 - 6500 K
Colour rendering index CRI
80-89
Filament test according to IEC 60695-2-11
850 °C - 30 s
With movement sensor
No
Suitable for lamp power
0 - 29 W
Max. system power
34 W
Height/depth
78 mm
Type of wiring
Suitable for loop-through wiring
Number of poles
2
Conductor cross section
2.5 mm²
Connection type
Push-in clamp
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
With lamp protection basket
No
