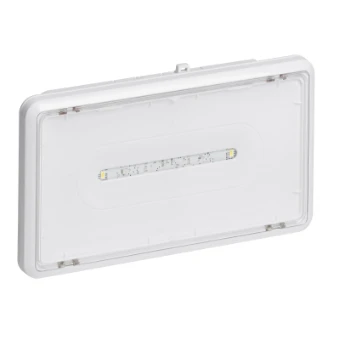

Emergency luminaire Legrand
Add to selection
General information
Ordercode YESSS
0382-3782
Product code
062550
EAN code
3414971404830
Product group
Emergency luminaire
Brand
Legrand
Product description
Eclairage de sécurité SATI à led - 8lm - adressable -IP43
Product specifications
Mounting method
Surface mounting/recessed mounting
Lamp type
LED not exchangeable
With pictogram
No
Degree of protection (IP)
IP43
Housing material
Plastic
Material cover
Plastic, transparent
Suitable for labelling type
Other
Lamp holder
Other
Housing colour
White
Number of lighting heads
1
With remote switch connection
No
Battery technology
NiMH
Voltage type
AC
Nominal voltage
207 - 253 V
Protection class according to IEC 61140
II
With light source
Yes
Length
225 mm
Type of control gear
LED operating device current-controlled
Width
125 mm
Light distributor
Diffuser lens/optic/panel
Height/depth
45 mm
Built-in length
275 mm
Built-in width
160 mm
Recognition distance
15 m
Colour temperature
5600 - 5700 K
Impact strength
IK07
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Max. system power
0.5 W
Luminous flux in standby mode
3 lm
Nominal operation time
5 - 5 h
Built-in height/depth
55 mm
Number of poles
4
Conductor cross section
2.5 mm²
Connection type
Other
