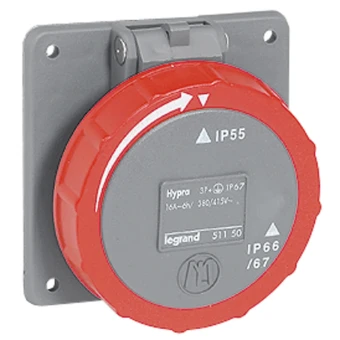

Panel-mounted CEE socket outlet (IEC 60309) Legrand
Add to selection
General information
Ordercode YESSS
0382-2732
Product code
051150
EAN code
3245060511500
Product group
Panel-mounted CEE socket outlet (IEC 60309)
Brand
Legrand
Product description
Socle tabl.entr. 70x70 Hypra IK 09 - 380-415 V - 16A - 3P+T
Product specifications
Number of poles
4
IEC-amperage
16 A
Identification colour
Red
Clock hour position
6 h
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Degree of protection (IP)
IP67
RAL-number
3013
Connection system
Screwed terminal
Insert direction
Straight
Material
Plastic
Military model
No
Flange size vertical
84 mm
Drill hole distance vertical
70 mm
Flange size horizontal
84 mm
Drill hole distance horizontal
70 mm
