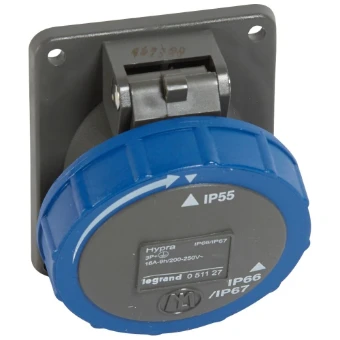

Panel-mounted CEE socket outlet (IEC 60309) Legrand
Add to selection
General information
Ordercode YESSS
0382-2727
Product code
051127
EAN code
3245060511272
Product group
Panel-mounted CEE socket outlet (IEC 60309)
Brand
Legrand
Product description
Socle tableau incliné Hypra IK 09 - 200-250 V - 16A - 3P+T
Product specifications
Number of poles
4
IEC-amperage
16 A
Identification colour
Blue
Clock hour position
6 h
Voltage according to EN 60309-2
230 V (50+60 Hz) blue
Degree of protection (IP)
IP67
RAL-number
5007
Connection system
Screwed terminal
Insert direction
Straight
Material
Plastic
Military model
No
Flange size vertical
84 mm
Drill hole distance vertical
70 mm
Flange size horizontal
74 mm
Drill hole distance horizontal
60 mm
Product information
