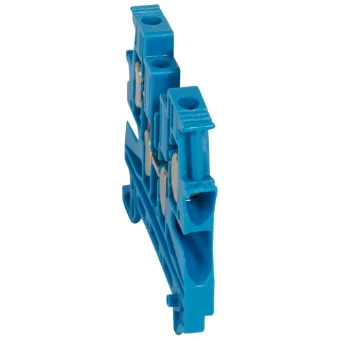

Feed-through terminal block Legrand
Add to selection
General information
Ordercode YESSS
0382-0974
Product code
037109
EAN code
3245060371098
Product group
Feed-through terminal block
Brand
Legrand
Product description
Bloc vis passage 1jonct-2E/2S 4mm² (pas 6mm) bleu-Viking 3
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 6 mm²
Number of levels
1
Number of clamp positions per level
4
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section solid-core
0.25 - 6 mm²
Connectable conductor cross section multi-wired
0.25 - 4 mm²
Rated current In
32 A
Rated voltage
500 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Operating temperature
-5 - 40 °C
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Blue
Internally connected stages
No
Width
6 mm
Height
51.5 mm
Depth
57 mm
