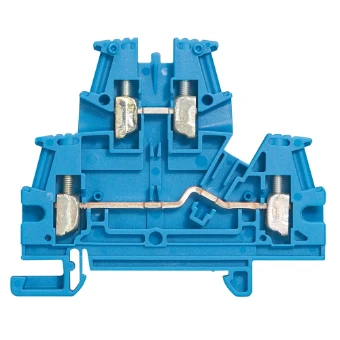

Feed-through terminal block Legrand
Add to selection
General information
Ordercode YESSS
0382-0972
Product code
037107
EAN code
3245060371074
Product group
Feed-through terminal block
Brand
Legrand
Product description
Bloc vis passage 2jonct-2 étag 2,5mm² (pas 5mm),bleu-Viking3
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Number of levels
2
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 2.5 mm²
Connectable conductor cross section solid-core
0.25 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Rated current In
24 A
Rated voltage
500 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Operating temperature
-5 - 40 °C
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Blue
Internally connected stages
No
Width
5 mm
Height
62.5 mm
Depth
75 mm
Product information
