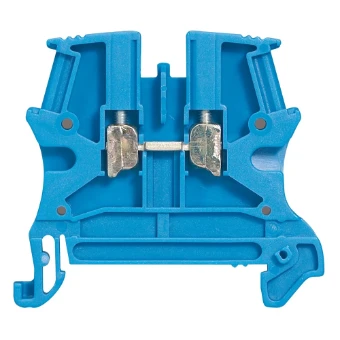

Feed-through terminal block Legrand
Add to selection
General information
Ordercode YESSS
0382-0971
Product code
037105
EAN code
3245060371050
Product group
Feed-through terminal block
Brand
Legrand
Product description
Bloc vis passage 1 jonct 35mm² (pas de 15 mm), bleu-Viking 3
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
2.5 - 50 mm²
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Connectable conductor cross section fine-strand with cable end sleeve
4 - 35 mm²
Connectable conductor cross section solid-core
2.5 - 50 mm²
Connectable conductor cross section multi-wired
4 - 35 mm²
Rated current In
125 A
Rated voltage
800 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Operating temperature
-5 - 40 °C
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Blue
Internally connected stages
No
Width
15 mm
Height
63 mm
Depth
57 mm
