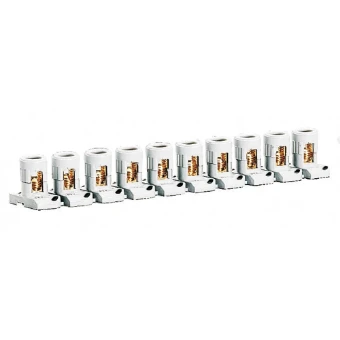

Single- and multi-pole terminal strip Legrand
Add to selection
General information
Ordercode YESSS
0382-0399
Product code
034000
EAN code
3245060340001
Product group
Single- and multi-pole terminal strip
Brand
Legrand
Product description
Barrette 10 bornes séparables cap. 2 x 6 mm² - avec pattes
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
6 - 6 mm²
Material insulation body
Thermoplastic
Mounting method
Other
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand with cable end sleeve
4 - 4 mm²
Connectable conductor cross section solid-core
6 - 6 mm²
Connectable conductor cross section multi-wired
6 - 6 mm²
Rated current In
40 A
Rated voltage
230 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of poles
1
Number of clamp positions per pole
1
Operating temperature
-5 - 40 °C
Inflammability class of insulation material according to UL94
Other
Closing plate required
No
Colour
Grey
Transparent
No
Width
161 mm
Height
29 mm
Depth
20 mm
