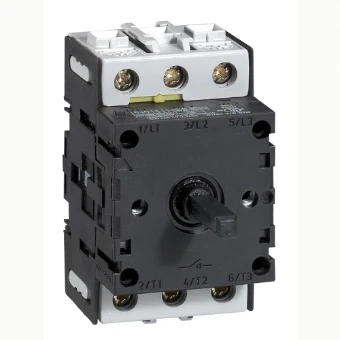

Switch disconnector (AC) Legrand
Add to selection
General information
Ordercode YESSS
0381-8604
Product code
022110
EAN code
3245060221102
Product group
Switch disconnector (AC)
Brand
Legrand
Product description
Int-sect rotatif composable Bloc 3P 25A
Product specifications
Rated permanent current Iu
25 A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
No
Rated operation power at AC-23, 400 V
7.5 kW
Number of poles
3
Rated operating voltage
690 - 690 V
Rated permanent current at AC-21, 400 V
25 A
Rated operation power at AC-3, 400 V
5.5 kW
Max. rated operation voltage Ue AC
400 V
Rated short-time withstand current lcw
0.43 kA
Switching power at 400 V
10 kW
Conditioned rated short-circuit current Iq
10 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Type of control element
Turn button
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP40
Width
44 mm
Height
75.4 mm
Depth
55 mm
