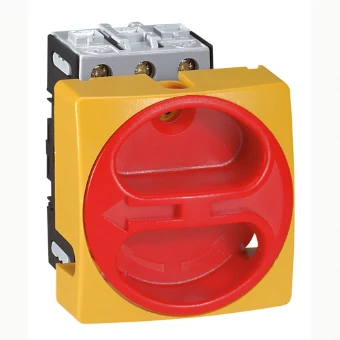

Switch disconnector (AC) Legrand
Add to selection
General information
Ordercode YESSS
0381-8603
Product code
022108
EAN code
3245060221089
Product group
Switch disconnector (AC)
Brand
Legrand
Product description
Inter-sect. rotatif complet enc. cad - 3P - 20 A
Product specifications
Rated permanent current Iu
20 A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Version as reversing switch
No
Rated operation power at AC-23, 400 V
7.5 kW
Number of poles
3
Version as main switch
Yes
Rated operating voltage
690 - 690 V
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Rated permanent current at AC-21, 400 V
20 A
Version as emergency stop installation
No
Rated operation power at AC-3, 400 V
4 kW
Max. rated operation voltage Ue AC
400 V
Rated short-time withstand current lcw
0.43 kA
Switching power at 400 V
8 kW
Conditioned rated short-circuit current Iq
6 kA
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Type of control element
Short rotary handle
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Colour control element
Red
Product information
