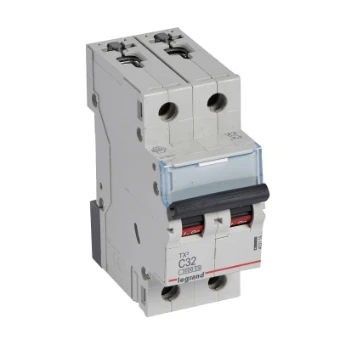

Miniature circuit breaker (MCB) Legrand
Add to selection
General information
Ordercode YESSS
0431-4886
Product code
403119
EAN code
3245064031196
Product group
Miniature circuit breaker (MCB)
Brand
Legrand
Product specifications
Release characteristic
C
Rated current
32 A
Number of poles (total)
2
Number of protected poles
2
Width in number of modular spacings
2
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
4.5 kA
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
3 kA
Built-in depth
44 mm
Additional equipment possible
Yes
Frequency
50 - 60 Hz
Voltage type
AC
Current limiting class
3
Concurrently switching neutral conductor
No
Pollution degree
2
Degree of protection (IP)
IP20
Flush-mounted installation
Yes
Explosion-proof
No
