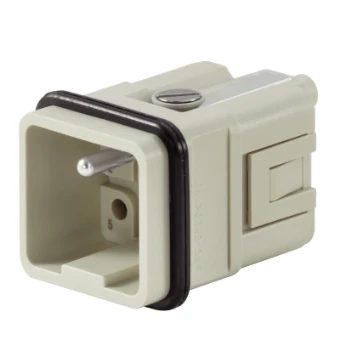

Contact insert for rectangular connectors WEIDMÜLLER
Add to selection
General information
Ordercode YESSS
6079-8854
Product code
1912440000
EAN code
4032248542031
Product group
Contact insert for rectangular connectors
Brand
WEIDMÜLLER
Product specifications
Contact insert without contacts
Yes
Contact type
Pin
Number of poles
5
Material connector insert
Thermoplastic
Rated current In
16 A
Operating temperature
-40 - 125 °C
Rated voltage
250 V
Rated surge voltage
6 kV
Pollution degree
3
Type of electric connection
Crimp connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
0.5 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.5 - 2.5 mm²
Connectable conductor cross section multi-wired
0.5 - 4 mm²
Material of contact insert
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Width
21 mm
Height
40 mm
Depth
21 mm
Product information
