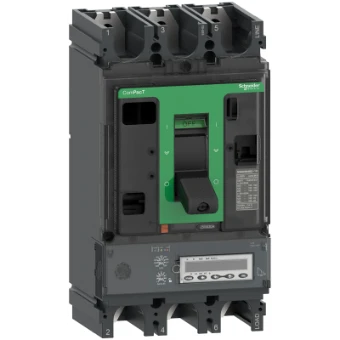

Power circuit-breaker for trafo/generator/installation protection Schneider Electric
Add to selection
General information
Ordercode YESSS
6032-4024
Product code
C63R35E630
EAN code
3606482003392
Product group
Power circuit-breaker for trafo/generator/installation protection
Brand
Schneider Electric
Product specifications
Rated permanent current Iu
630 A
Rated voltage
690 - 690 V
Device construction
Built-in device fixed built-in technique
Number of poles
3
Degree of protection (IP)
IP40
Suitable for DIN rail (top hat rail) mounting
No
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
200 kA
Overload release current setting
250 - 630 A
Adjustment range short-term delayed short-circuit release
945 - 6300 A
Adjustment range undelayed short-circuit release
945 - 9450 A
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
DIN rail (top hat rail) mounting optional
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
Position of connection for main current circuit
Front side
Type of control element
Toggle
Motor drive optional
Yes
Complete device with protection unit
Yes
Motor drive integrated
No
