General information

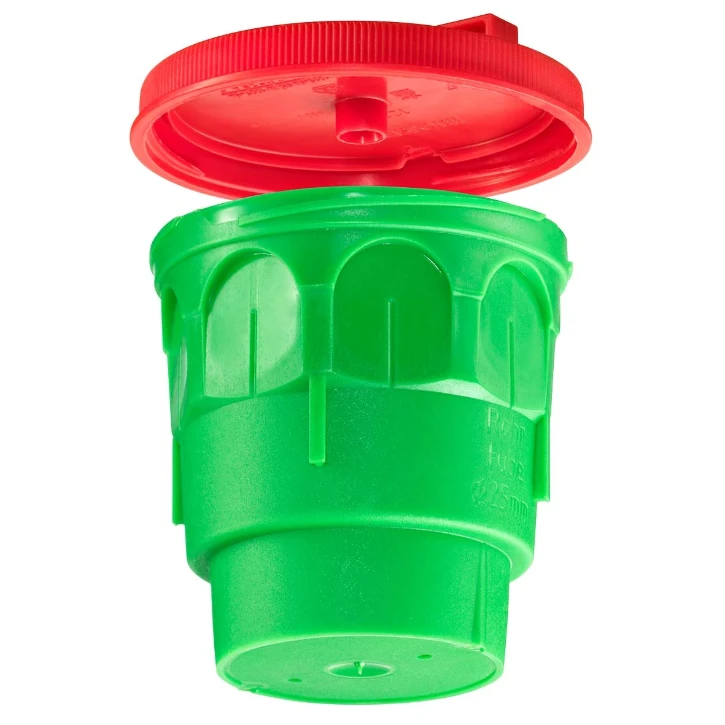

Betonbau Plattendecken-Grossdose 105 2-teilig, Auslassöffnung Ø 60 mm
Betonbau Plattendecken-Grossdose 105 2-teilig, Auslassöffnung Ø 60 mm
Ordercode YESSS
6016-6767
Product code
1227-54
EAN code
4013456560147
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
KAISER
Type
1227-54
Product description
Betonbau Plattendecken-Grossdose 105, 2-teilig, Auslassöffnung Ø 60 mm, mit Metallmutter M5, Tiefe 105 mm
Product specifications
Mounting method
Concrete building
Diameter
60 mm
Shape
Round
Provided with revolving ring
No
Airtight
No
Couplable
Yes
With screws
No
Construction type
Device connection box (round/square)
Model
Single
Equipped with
None
Depth
105 - 105 mm
Mounting switching equipment
Screwing
Housing feed-through by break-out opening
No
Housing feed-through by seal membrane
No
For tube diameter
25 mm
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking
No
Inlet from the rear
Yes
Material
Plastic
Pipe locking optional
No
Halogen free
Yes
Colour
Green
Number of included spouts
0
Degree of protection (IP)
IP3X
Sealable
No
Circuit integrity
None
With screening
No
Cover model
None
Transparent cover
No
Luminaire hook mounting
No
Nozzle
None
Special application
Other
