Betonbau Gerätedose für britische Geräteeinsätze, 1-gang
- 6016-6745
- |
- 1223-41
0
piece
in stock
Don’t have an account? Create one
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

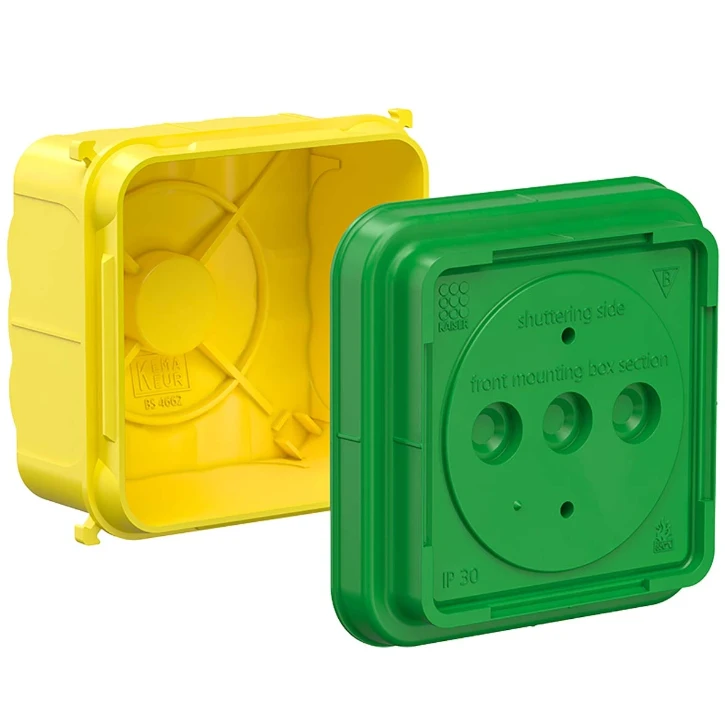

Betonbau Gerätedose für britische Geräteeinsätze, 1-gang
Betonbau Gerätedose für britische Geräteeinsätze, 1-gang
Ordercode YESSS
6016-6745
Product code
1223-41
EAN code
4013456559820
Product group
Box/housing for built-in mounting in the wall/ceiling
Brand
KAISER
Type
1223-41
Product description
Betonbau Gerätedose, für britische Geräteeinsätze, 1-gang, Einbauöffnung 68 x 68 mm
Product specifications
Mounting method
Concrete building
Diameter
68 mm
Shape
Round
Provided with revolving ring
No
Airtight
No
Couplable
Yes
With screws
No
Construction type
Built-in installation box (device box)
Model
Single
Equipped with
None
Length
68 mm
Depth
60 - 60 mm
Width
68 mm
Mounting switching equipment
Screwing
Housing feed-through by break-out opening
No
Housing feed-through by seal membrane
No
For tube diameter
32 mm
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking
No
Inlet from the rear
Yes
Material
Plastic
Pipe locking optional
No
Halogen free
Yes
Colour
Green
Number of included spouts
0
Degree of protection (IP)
IP3X
Sealable
No
Circuit integrity
None
With screening
No
Cover model
None
Transparent cover
No
Luminaire hook mounting
No
Nozzle
Tunnel branch pipe
Special application
Other
