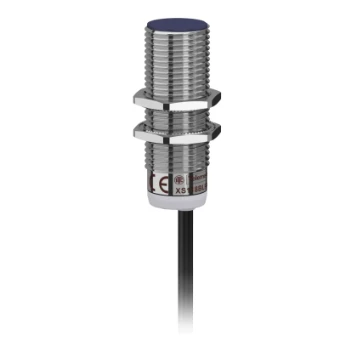

Inductive proximity switch Schneider Electric
Add to selection
General information
Ordercode YESSS
6036-7692
Product code
XS118BHPAL2
EAN code
3389119641005
Product group
Inductive proximity switch
Brand
Schneider Electric
Product specifications
Width sensor
0 mm
Height of sensor
18 mm
Length of sensor
53 mm
Diameter sensor
18 mm
Mechanical mounting condition for sensor
Other
Switching distance
8 mm
Suitable for safety functions
No
Type of switch function
Normally open contact
Type of switching output
PNP
Type of electric connection
Cable
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Other
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Nickel-plated
Cascadable
No
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Max. output current at protected output
10 mA
Supply voltage
12 - 24 V
Rated control supply voltage at AC 50 Hz
0 - 0 V
Rated control supply voltage at AC 60 Hz
0 - 0 V
Rated control supply voltage at DC
12 - 24 V
Voltage type
DC
Switching frequency
700 Hz
With monitoring function downstream switching devices
No
Material housing
Metal
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Interference resistance to magnetic fields
Immune against magnetic DC-field
