Downlight/spot/floodlight IN HOUSE LED
Add to selection
General information
Ordercode YESSS
6098-3810
Product code
UP034IR
Product group
Downlight/spot/floodlight
Brand
IN HOUSE LED

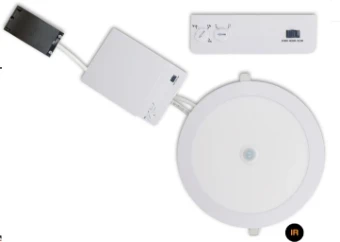

Downlight Ultra Slim 20W CCT m. IR-Melder
Downlight Ultra Slim 20W CCT m. IR-Melder
Product description
Downlight Ultra Slim 20W CCT m. IR-Melder
Product specifications
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
Yes
Adjustability
Not adjustable
With light source
Yes
Housing colour
White
With light sensor
No
Reflector
Matt
Light distribution
Symmetric
Type of control gear
LED operating device current-controlled
With control gear
Yes
Max. system power
20 W
Nominal voltage
200 - 240 V
Colour temperature
3000 - 6500 K
Housing material
Aluminium
Beam angle
> 80° - Extreme wide beam
Height/depth
30 mm
Voltage type
AC
Outer diameter
240 mm
Colour of light
White
Colour rendering index CRI
80-89
Protection class according to IEC 61140
III
Impact strength
IK06
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Light distributor
Diffuser lens/optic/panel
Light outlet
Direct
Number of poles
2
Energy efficiency class of the light source according to EU regulation 2019/2015
F
Product information
