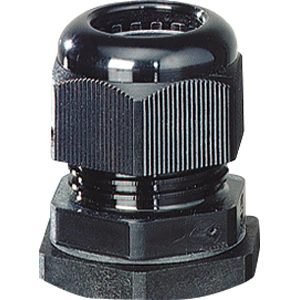

Cable gland Hensel ENYFIT Leitungseinführungssysteme
Add to selection
General information
Ordercode YESSS
6070-1050
Product code
36000195
EAN code
4012591103295
Product group
Cable gland
Brand
Hensel
Serie
ENYFIT Leitungseinführungssysteme
Anbau-Kabelstutzen,IP66/IP67/IP69,M20,sw Glühdrahtprüfung IEC 60695-2: 960 °C
Anbau-Kabelstutzen,IP66/IP67/IP69,M20,sw Glühdrahtprüfung IEC 60695-2: 960 °C
Product description
Anbau-Kabelstutzen für Vorprägungen M 20 und Dichtbereich Ø 5-13 mm.
Product specifications
Material quality
Polyamide (PA)
Thread type
Metric
Nominal thread size metric/PG
20
Suitable for cable diameter
5 - 13 mm
With strain relief
Yes
Material
Plastic
Degree of protection (IP)
IP67
Shock resistant
Yes
Halogen free
Yes
With locknut
Yes
Model
Straight
Bend radius protection/trumpet flare
No
Thread length
8 mm
Pitch thread
1.5 mm
Wrench width
24 mm
Hexagon angular dimension
26.5 mm
RAL-number
9005
Surface protection
Untreated
Glass-fibre reinforced
No
Colour
Black
Multi seal area
No
Flat cable coupling
No
Type of sealing
Cut-out ring
Separable screw gland
No
Operating temperature
-25 - 70 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
Product information
