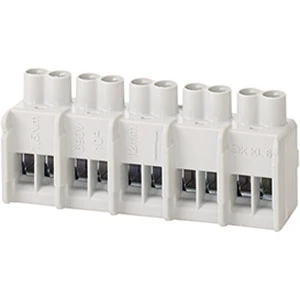

Branch terminal Hensel ENYCASE Kabelabzweigkästen
Add to selection
General information
Ordercode YESSS
6070-1015
Product code
26001226
EAN code
4012591122456
Product group
Branch terminal
Brand
Hensel
Serie
ENYCASE Kabelabzweigkästen
Klemmen 1,5-10 qmm, 5polig, 2 Klemmstellen je Pol
Klemmen 1,5-10 qmm, 5polig, 2 Klemmstellen je Pol
Product description
Klemme mit 2 Klemmstellen je Pol bis 10 mm². Zum Einbau in Kabelabzweigkästen über Klemmenhalter. Einsetzbar auf Klemmenhalter DK KH 06.
Product specifications
Nominal cross section main conductor, SE
1.5 - 10 mm²
Nominal cross section main conductor, SM
1.5 - 10 mm²
Nominal cross section branch conductor, SE/RE
1.5 - 6 mm²
Surface protection
Bare
Nominal cross section branch conductor, SM/RM
1.5 - 6 mm²
Material main conductor
Copper
Material branch conductor
Copper
Terminal insulated
Yes
Clamping channel opening main conductor
One side open
Clamping channel opening branch conductor
One side open
Type of connection
Screwed connection
