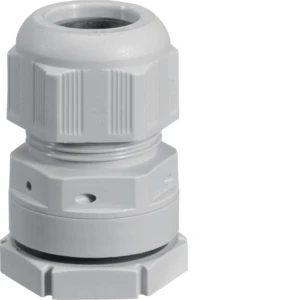

Cable gland Hager
Add to selection
General information
Ordercode YESSS
0292-4653
Product code
VZ025D
Product group
Cable gland
Brand
Hager
Type
VZ025D
Druckausgleichsverschr.,vector,IP66, M25
Druckausgleichsverschr.,vector,IP66, M25
Product description
Druckausgleichsverschraubung, vector, IP66, M25
Product specifications
Material quality
Polyamide (PA)
Thread type
Metric
Nominal thread size metric/PG
25
Suitable for cable diameter
11 - 17 mm
With strain relief
Yes
Material
Plastic
Degree of protection (IP)
IP65
Shock resistant
Yes
Halogen free
Yes
With locknut
Yes
Model
Straight
Bend radius protection/trumpet flare
Yes
Thread length
8 mm
Pitch thread
1.5 mm
Wrench width
32 mm
Hexagon angular dimension
32 mm
RAL-number
7035
Surface protection
Untreated
Glass-fibre reinforced
No
Colour
Grey
Snapping in opening
No
Multi seal area
No
Flat cable coupling
No
Separable screw gland
No
Operating temperature
-25 - 40 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
For armoured cable
No
Screened
No
