Ausschalter 16A 1S 230V AC 1PLE
- 0345-7884
- |
- SBN116
0
piece
in stock
Don’t have an account? Create one
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

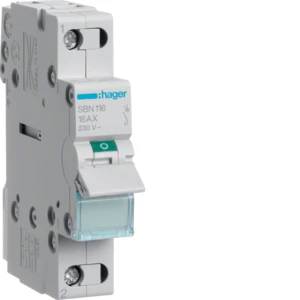

Ausschalter 16A 1S 230V AC 1PLE
Ausschalter 16A 1S 230V AC 1PLE
Ordercode YESSS
0345-7884
Product code
SBN116
Product group
Main switch for distribution board
Brand
Hager
Type
SBN116
Product description
Ausschalter 16A 1 Schließer 230V AC 1PLE.Ausschalter nach DIN EN 60669-1 (VDE 0632-1), DIN EN 60669-2-4 (VDE 0632-2-4) und DIN EN IEC 60947-3 (VDE 0660-107) mit VDE Zeichen, Beschriftungsmöglichkeit direkt am Gerät und geeignet zum nachträglichen Anbau von Zusatzeinrichtungen.
Product specifications
Switching function
Off switch
Number of poles
1
Rated current
16 A
Rated voltage
230 V
Min. rated voltage
230 V
Rated switching capacity
0.338 kA
Short-circuit breaking capacity (Icw)
0.24 kA
Voltage type
AC
With signal lamp
No
Max. lamp power
0 W
Width in number of modular spacings
1
Built-in depth
68 mm
Degree of protection (IP)
IP20
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
