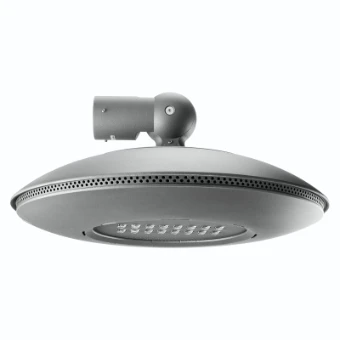

Luminaire for streets and places Gewiss
Add to selection
General information
Ordercode YESSS
6002-5149
Product code
GWS7208
EAN code
8011564802650
Product group
Luminaire for streets and places
Brand
Gewiss
Product specifications
Lamp type
LED not exchangeable
Mounting method
Side entry
Material housing
Aluminium
Degree of protection (IP)
IP66
Protection class
II
Surface protection
Powder coating
Suitable for spigot size
55 - 65 mm
Lamp holder
None
Colour housing
Grey
Material cover
Other
LED nominal current at constant current
550550 - 550550 mA
Suitable for number of lamps
4
Voltage type
AC
Nominal voltage
220 - 240 V
Nominal current
550 - 550 mA
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Dimming DALI
No
Dimming DMX
No
Adjustable optics
No
Dimming DSI
No
Impact strength
IK08
With light source
Yes
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Remote control
None
Dimming mains voltage modulation
No
With radio control
No
Dimming phase cut-off
No
Constant light output (CLO)
No
Dimming phase cut-on
No
With light regulation program control
No
Dimming programmable
No
With connection cable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Colour of light
White
Dimming Zigbee
No
Colour temperature
4000 - 4000 K
Colour rendering index CRI
70-79
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Light distributor
Focal lens
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC62722-2-1
-25 - 35 °C
Max. system power
105 W
Luminaire efficacy
100 lm/W
Power factor
0.9
Height/depth
268 mm
Diameter
570 mm
Type of wiring
Ending
Number of poles
2
Connection type
Screwed terminal
Exchangeable control gear
No
Art des Anschlusses für Sensor-/Kommunikationsmodul
Other
With light sensor
No
Operation by Bluetooth
No
Product information
