General information

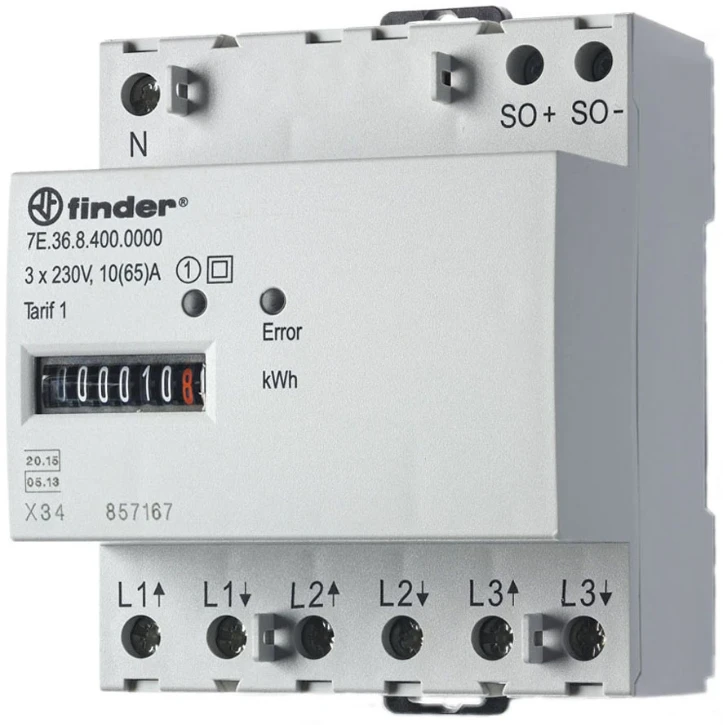

Zähler für 3-Phasen Drehstrom, bis 65 A, SO Schnittstelle, MID
Zähler für 3-Phasen Drehstrom, bis 65 A, SO Schnittstelle, MID konform
Ordercode YESSS
6027-3955
Product code
7E3684000010
Product group
Electricity meter
Brand
Finder
Type
7E.36.8.400.0010
Product description
Elektronischer Wirkstromzähler für 3-Phasen Drehstrom, max. Strom 65 A, Genauigkeitsklasse 1/B, Reiheneinbaugerät für 35 mm DIN Schiene EN 60715 TH35, Baubreite 70 mm, Nennspannung 3 x 230 V AC, SO-Schnittstelle nach DIN 43864 (100 Impulse pro kWh), plombierbar, MID konform. Anschlussquerschnitte Hauptstromkreis: eindrähtig 1,5-16 mm², mehrdrähtig 1,5-16 mm².
Product specifications
Model
Direct measurement
Mounting method
DRA (DIN-rail adaptor)
Energy type
Effective power
Tariff type
One-tariff
Type of meter
Electronic
Nominal current (In)
10 A
Max. current (Imax)
65 A
Nominal voltage (Un) N-L
230 - 230 V
Frequency
50 - 50 Hz
Accuracy class
B
Pole type
Four conductor
Suitable for
Purchase
Tariff control
External
Measurement type load profile
Yes
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
100 - 100 Imp/kWh (kvarh)
Type of indication
Analogue
Width in number of modular spacings
4
Type of interface
Other
EEC40 signature
No
With lock code
No
Number of positions total (counter)
7
Degree of protection (IP)
IP20
Degree of protection (NEMA)
1
