General information

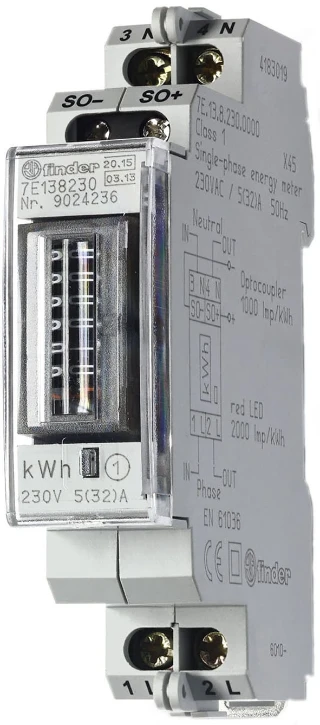

Zähler für 1-Phasen Wechselstrom, bis 32 A, SO Schnittstelle, MID
Zähler für 1-Phasen Wechselstrom, bis 32 A, SO Schnittstelle, MID konform
Ordercode YESSS
6027-3942
Product code
7E1382300010
Product group
Electricity meter
Brand
Finder
Type
7E.13.8.230.0010
Product description
Elektronischer Wirkstromzähler für 1-Phasen Wechselstrom, max. Strom 32 A, Genauigkeitsklasse 1/B (5 A), Reiheneinbaugerät für 35 mm DIN Schiene EN 60715 TH35, Baubreite 17,5 mm, Nennspannung 230 V AC, PTB-Zulassung, SO-Schnittstelle nach DIN 43864 (1000 Impulse pro kWh), plombierbar, MID konform. Anschlussquerschnitte Hauptstromkreis: eindrähtig 1-6 mm², mehrdrähtig 0,75-4 mm².
Product specifications
Model
Direct measurement
Mounting method
DRA (DIN-rail adaptor)
Energy type
Effective power
Tariff type
One-tariff
Type of meter
Electronic
Nominal current (In)
5 A
Max. current (Imax)
32 A
Nominal voltage (Un) N-L
230 - 230 V
Frequency
50 - 50 Hz
Accuracy class
B
Pole type
Single phase
Suitable for
Purchase
Tariff control
External
Measurement type load profile
Yes
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate
1000 - 1000 Imp/kWh (kvarh)
Type of indication
Analogue
Width in number of modular spacings
1
Type of interface
Other
EEC40 signature
No
With lock code
No
Number of positions total (counter)
7
Degree of protection (IP)
IP20
Degree of protection (NEMA)
1
