General information

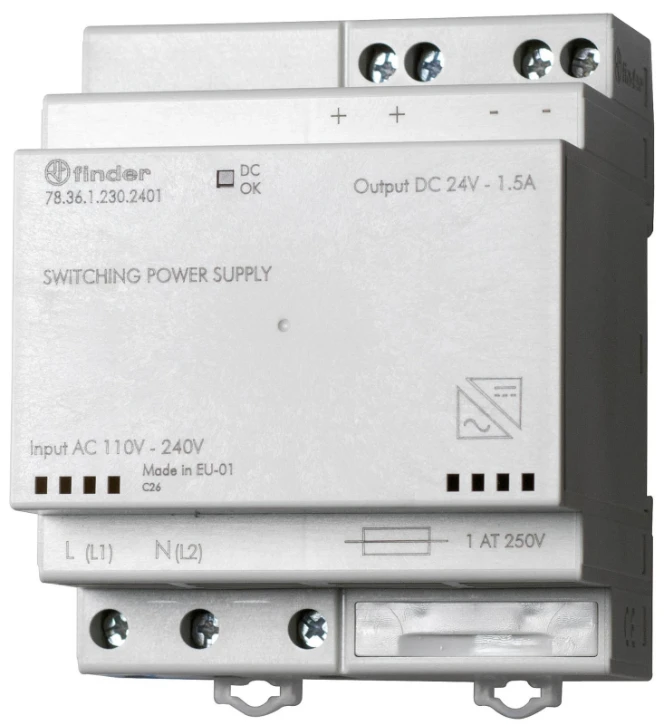

DIN-Schienen Schaltnetzteil, Eingang 110-240 V AC oder 220 V DC,
DIN-Schienen Schaltnetzteil, Eingang 110-240 V AC oder 220 V DC, Ausgang 36 W 24 V DC
Ordercode YESSS
6027-4271
Product code
783612302401
Product group
DC-power supply
Brand
Finder
Type
78.36.1.230.2401
Product description
DIN-Schienen Schaltnetzteil, Eingang 110-240 V AC oder 220 V DC, bei AC Spannung schaltet das Netzteil beim Nulldurchgang, Ausgang 36 W bei 24 V DC, Ausgangsnennstrom 1,5 A, interner Thermoschutz, Kurzschlussschutz am Ausgang, Breite 70 mm, für Tragschiene 35 mm (EN 60715).
Product specifications
Voltage type (supply voltage)
AC
Secondary voltage adjustable
No
Power output
36 W
Output voltage stabilized
No
Stabilized
Yes
Short-circuit-proof
Yes
1st secondary output voltage
24 - 24 V
Max. output current 1
1.7 A
Nominal value output voltage 1
24 V
Rated supply voltage AC 50 Hz
110 - 240 V
Degree of protection (IP)
IP20
Nominal value output current 1
1.5 A
Rated supply voltage AC 60 Hz
110 - 240 V
Rated supply voltage DC
220 - 220 V
Power consumption
57.5 VA
Type of electric connection
Screw connection
Suitable for rail mounting
Yes
Suitable for distribution board
Yes
Built-in height
88.8 mm
Width in number of modular spacings
4
Direct mounting possible
No
Width
70 mm
Height
88.8 mm
Depth
60.8 mm
Built-in width
70 mm
Suitable for safety functions
No
Performance level according to EN ISO 13849-1
None
SIL according to IEC 61508
None
Degree of protection (NEMA)
1
