General information

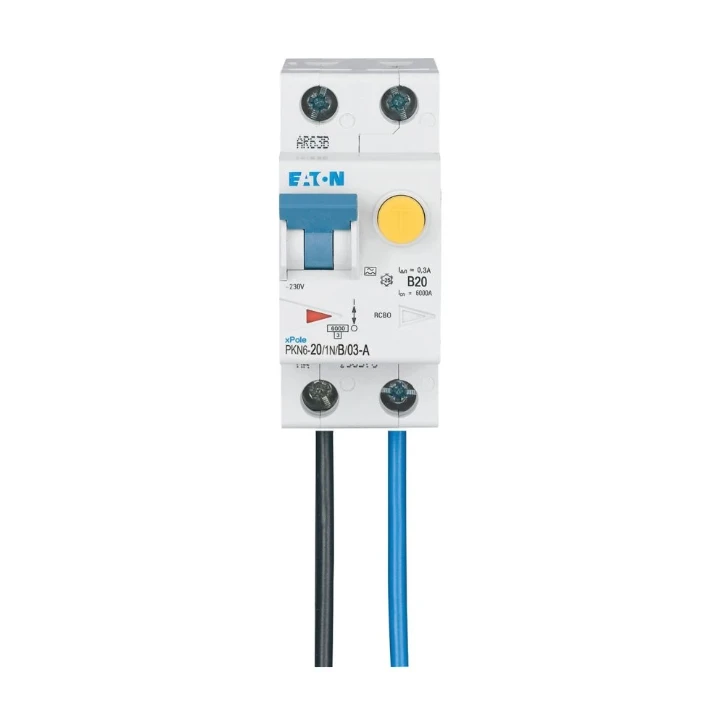

RCD/MCB combination switch 6kA 1P+N 20A B-kar 300mA FLEX aside
RCD/MCB combination switch 6kA 1P+N 20A B-kar 300mA FLEX aside
Ordercode YESSS
6097-9139
Product code
6907992
EAN code
09010653026259
Product group
Earth leakage circuit breaker
Brand
Eaton
Product description
RCBO combination switch 6 kA; 1 pole+N; 20 A; characteristic B; 300mA; FLEX incl. connection cables
Product specifications
Release characteristic
B
Rated current
20 A
Rated fault current
0.3 A
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Width in number of modular spacings
2
Rated voltage
400 V
Number of poles (total)
2
Number of protected poles
1
Rated short-circuit breaking capacity according to EN 61009
6 kA
Leakage current type
A
Rated short-circuit breaking capacity Icn according to EN 61009-1
6 kA
Frequency
50 Hz
Current limiting class
3
Disconnection characteristic
Other
Rated short-circuit breaking capacity according to IEC 60947-2
0 kA
Concurrently switching neutral conductor
Yes
Overvoltage category
3
Surge current capacity
0.25 kA
With interlocking device
No
Pollution degree
2
Voltage type
AC
Built-in depth
60 mm
Anti-nuisance tripping version
No
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 40 °C
Connectable conductor cross section solid-core
1 - 25 mm²
Connectable conductor cross section multi-wired
1 - 25 mm²
Power loss
0 W
