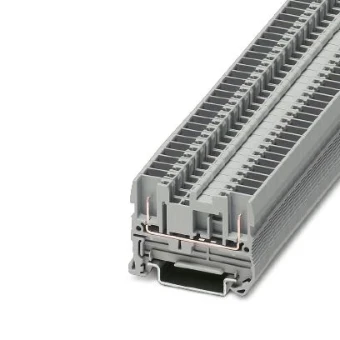

Feed-through terminal block Phoenix Contact
Add to selection
General information
Ordercode YESSS
6023-5078
Product code
3042133
EAN code
4017918936051
Product group
Feed-through terminal block
Brand
Phoenix Contact
Feed-through terminal block
Feed-through terminal block
Product description
Feed-through terminal block, Current and voltage are determined by the plug used., nom. voltage: 500 V, nominal current: 24 A, connection method: Plug-in connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 2.5 mm²
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Connectable conductor cross section fine-strand with cable end sleeve
0.14 - 2.5 mm²
Connectable conductor cross section solid-core
0.08 - 4 mm²
Rated current In
24 A
Rated voltage
500 V
Type of electrical connection 1
Plug-in connection
Type of electrical connection 2
Plug-in connection
Operating temperature
-60 - -60 °C
Closing plate required
Yes
Colour
Grey
Internally connected stages
Yes
Width
5.15 mm
Height
48.734 mm
Depth
35.25 mm
