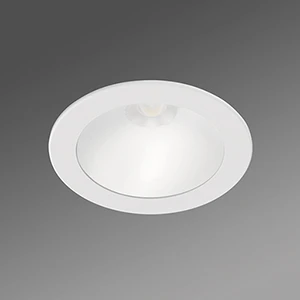

Downlight/spot/floodlight
Add to selection
General information
Ordercode YESSS
6096-2997
Product code
36511104110
EAN code
4020863477449
Product group
Downlight/spot/floodlight
Type
changy-B IP54 2800-2100 830 ETM
Einbau-Downlight, Einzellinse/TriZone
Einbau-Downlight, Einzellinse/TriZone
Product description
Gehäuse aus Stahlblech mit Abdeckring aus Aluminium-Druckguss in Ral 9016 verkehrsweiß lackiert. Mit Befestigungsfedern für werkzeuglose Montage, geeignet für Deckenstärken von 10mm-25mm. Lichtverteilung direkt breitstrahlend mittels Einzellinse/TriZone aus Kunststoff, TriZone-Lens, UGR (4H/8H) 23.7.
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Not adjustable
With light source
Yes
Housing colour
White
Suitable for low voltage cable system
No
With light sensor
No
Reflector
Other
Light distribution
Symmetric
Suitable for number of light sources
1
Lamp holder
Other
Type of control gear
Not required
Suitable for lamp power
19 - 27 W
With control gear
Yes
Surface protection
Lacquered
Max. system power
27 W
Surface brushed
No
Nominal voltage
230 - 230 V
Colour temperature
3000 - 3000 K
Housing material
Steel
Material cover
Glass transparent
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
41-80° - Wide beam
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
110.5 mm
Voltage type
AC
Dimming mains voltage modulation
No
Outer diameter
246 mm
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
II
Dimming Touch and Dim
No
Impact strength
IK02
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Light distributor
Other
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
100000 h
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC 62722-2-1
25 - 25 °C
Type of wiring
Ending
Number of poles
2
Connection type
Other
Suitable for workplace according to EN 12464-1
No
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
Other
Colour consistency (McAdam ellipse)
SDCM3
Suitable for wall mounting
No
Exchangeable control gear
No
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
81 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
73 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
45 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
10 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
10 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
10 %
Colour of light adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Built-in diameter
229 - 229 mm
IFTTT support available
No
Unified Glare Ratio (UGR)
23.7
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Operation by Bluetooth
No
Reflector colour
White
Product information
