Downlight/spot/floodlight EcoDim Led spots
Add to selection
General information
Ordercode YESSS
6121-7860
Product code
ED-10045
EAN code
8719322372918
Product group
Downlight/spot/floodlight
Brand
EcoDim
Serie
Led spots
Type
2700K, Rond, Nikkel

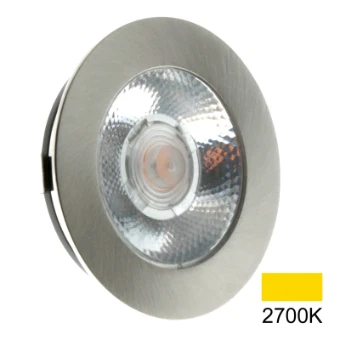

EcoDim ED-10045 LED Spot 3W 2700K Round Nickel IP54 DIM
EcoDim ED-10045 LED Spot 3W 2700K Round Nickel IP54 DIM
Product description
ECO DIM ED-10045 LED Recessed Spot 3W 2700K 90° IP54 62x14mm Dimmable up to 5% Round Nickel Built-in 55mm Excluding driver
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
not adjustable
With light source
Yes
Colour housing
Nickel
Suitable for low voltage cable system
No
With light sensor
No
Reflector
High-gloss
Light sharing
Symmetric
Suitable for number of lamps
1
Lamp holder
None
Type of control gear
Electronic transformer
Suitable for lamp power
3 - 3 W
With control gear
No
Surface protection
Powder coating
Nominal current
100 - 100 mA
Surface brushed
No
Nominal voltage
220 - 240 V
Colour temperature
2700 - 2700 K
LED nominal current at constant current
260 - 260 mA
Material housing
Aluminium
Material cover
Glass transparent
Dimming depending on control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
Extreme wide beam >80°
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
14 mm
Voltage type
DC
Dimming mains voltage modulation
No
Outer diameter
62 mm
Dimming phase cut-off
Yes
Dimming phase cut-on
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
90-100
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class
II
Dimming Touch and Dim
No
Impact strength
Other
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Light distributor
Reflector
Covering of the luminaire with thermally insulating material possible
Yes
Light outlet
Direct
Energy efficiency class of the built-in lamp
A+
Rated life time L70/B50 at 25 °C
50000 h
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC62722-2-1
25 - 25 °C
Power factor
0.9
Type of wiring
Ending
Number of poles
2
Conductor cross section
0.5 mm²
Connectable conductor cross section
5 - 5 mm²
Connection type
Other
Suitable for workplace according to EN 12464-1
Yes
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
No
Exchangeable control gear
Yes
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
92 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
90 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
0.003 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
0.003 %
Colour temperature adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Stroboscope effect value SVM
1
IFTTT support available
No
Unified Glare Ratio (UGR)
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
G
Operation by Bluetooth
No
Reflector colour
Silver
