Electronic overload relay Eaton ZEB
Add to selection
General information
Ordercode YESSS
0509-2702
Product code
136500
EAN code
4015081332809
Product group
Electronic overload relay
Brand
Eaton
Serie
ZEB
Type
ZEB32-20-GF/KK
Motorschutzrelais, Einzelaufstellung, Erdschlussüberwachung: mit, Ir= 4 - 20 A, 1
Motorschutzrelais, Einzelaufstellung, Erdschlussüberwachung: mit, Ir= 4 - 20 A, 1 S, 1 Ö
Product description
Overload relay, Product range: Electronic overload relays ZEB, Phase-failure sensitivity: IEC/EN 60947, VDE 0660 Part 102, Description: Test/off button, Reset pushbutton, Manual/auto reset selectable, Protection in the case of starting under load (class 10 to class 20), Mounting type: Separate mounting, Auxiliary contacts N/O = Normally open: 1 N/O, Auxiliary contacts N/C = Normally closed: 1 N/C, For use with: DILM17, DILM25, DILM32, DILM38, DIULM17, DIULM25, DIULM32, SDAINLM30, SDAINLM45, SDAINLM55, Standards: IEC/EN 60947, VDE 0660, UL, CSA, Degree of Protection: IP20
Product specifications
Adjustable current range
4 - 20 A
Mounting method
Separate positioning
Number of auxiliary contacts as normally closed contact
1
Release class
Adjustable
Rated control supply voltage at DC
0 - 0 V
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage at AC 50 Hz
0 - 0 V
Rated control supply voltage at AC 60 Hz
0 - 0 V
Reset function automatic
Yes
Reset function input
No
Reset function push-button
Yes
External power supply required
No
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
230 - 690 V
Operating voltage at AC 60 Hz
230 - 690 V
Operating voltage at DC
0 - 0 V

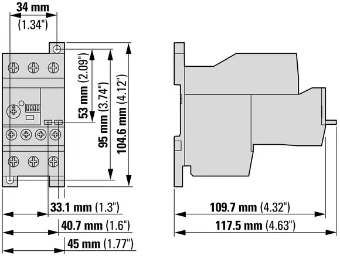

Width
45 mm
Height
110 mm
Depth
108 mm
