Control switchp12 S16A, 250 V
- 0508-0474
- |
- 276301
4
piece
in stock
Don’t have an account? Create one
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

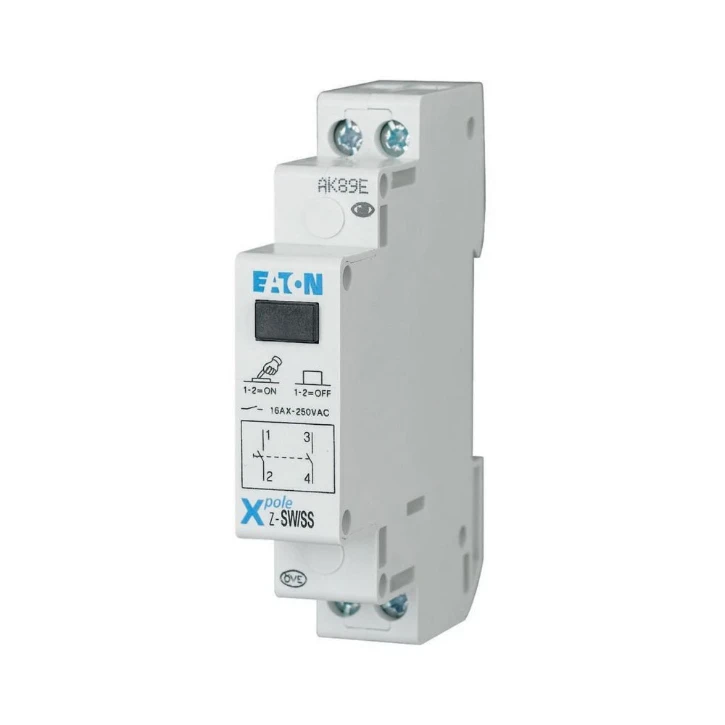

Control switchp12 S16A, 250 V
Control switchp12 S16A, 250 V
Ordercode YESSS
0508-0474
Product code
276301
EAN code
04015082763015
Product group
Main switch for distribution board
Brand
Eaton
Serie
xPole
Type
Z-SW/SS
Product description
Switch, function: 2 N/O, rated operational current 16A, rated operating voltage 250V AC, color of pushbutton black, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
Product specifications
Switching function
Control switch
Number of poles
2
Rated current
16 A
Rated voltage
250 V
Min. rated voltage
230 V
Rated switching capacity
0.016 kA
Short-circuit breaking capacity (Icw)
0.02 kA
Voltage type
AC
With signal lamp
No
Colour calotte
Other
Lamp type
Other
Lamp socket
Other
Max. lamp power
0 W
Width in number of modular spacings
1
Built-in depth
60 mm
Degree of protection (IP)
IP40
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Imprint/indication
Other
Forced segregation according to DIN VDE 0113
No
