General information

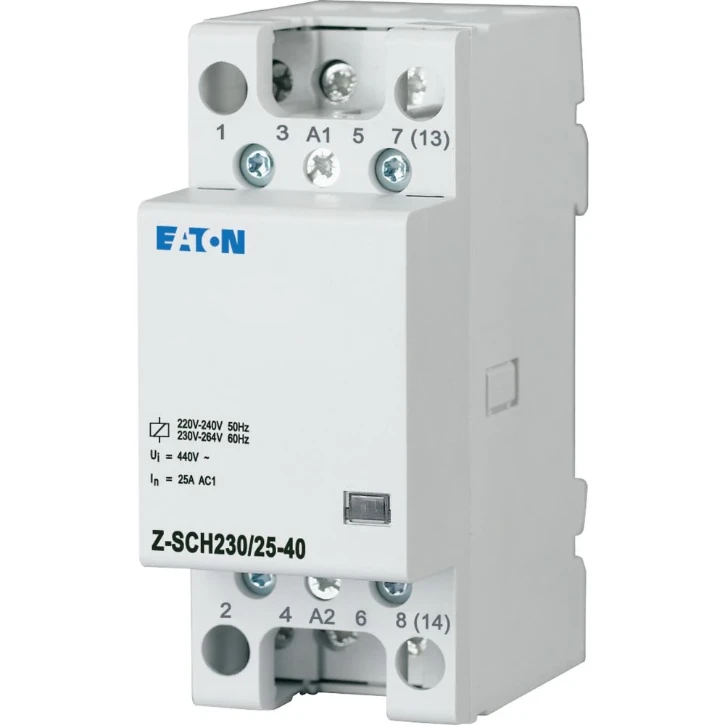

Installation contactor, 230VAC/50Hz, 4N/O, 25A, 2HP
Installation contactor, 230VAC/50Hz, 4N/O, 25A, 2HP
Ordercode YESSS
0508-0377
Product code
248847
EAN code
04015082488475
Product group
Installation contactor for distribution board
Brand
Eaton
Serie
xPole
Type
Z-SCH230/25-40
Product description
Installation contactor, rated control circuit voltage 230V AC, rated operational current at AC1 25A, function: 4 N/O, details according to IEC 61095, EN 61095, VDE 0660, IEC 60947-4-1_x, EN 60947-4-1, VDE, standard front dimension 45 mm, mounting width 2 SU (35mm), top-hat rail mounting
Product specifications
Rated operation current
25 A
Rated excitation voltage
195.5 - 253 V
Rated operating voltage
440 - 440 V
Voltage type (excitation voltage)
AC
Voltage type (operating voltage)
AC
Max. incandescent lamp load
3000 W
Max. load fluorescent lamp
1160 VA
Max. load fluorescent lamp (Duo circuit)
2552 VA
Max. load fluorescent lamp (parallel compensated)
1044 VA
Slider for hand switch
No
Built-in depth
60 mm
Additional equipment possible
Yes
Degree of protection (IP)
IP40
Number of contacts as normally open contact
4
Number of contacts as normally closed contact
0
Width in number of modular spacings
2
With day/night function
No
Hum-free
No
Utilization category according to EN IEC 60947-4-1
AC-1
