General information

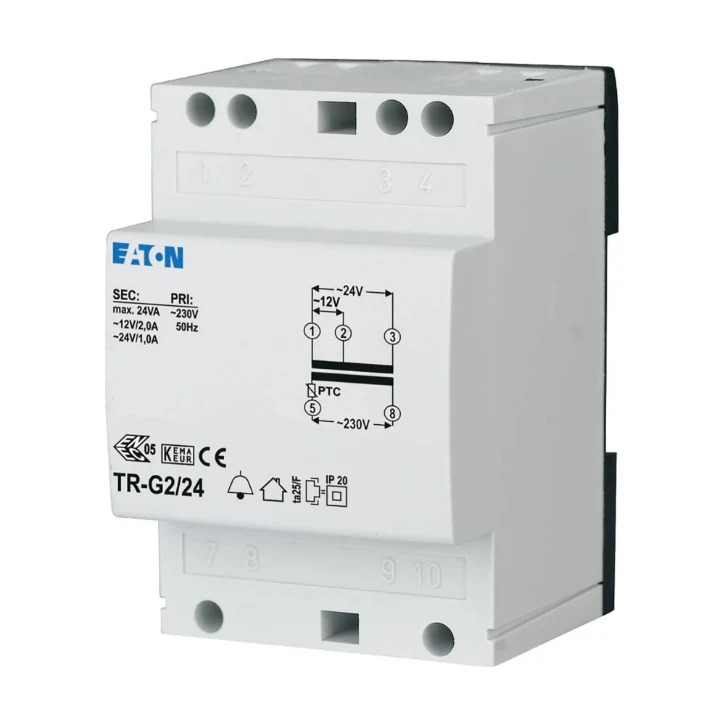

Transformator 230V, 12/24V, 2/1A, 3HP
Transformator 230V, 12/24V, 2/1A, 3HP
Ordercode YESSS
0508-0163
Product code
272484
EAN code
04015082724849
Product group
Bell transformer
Brand
Eaton
Serie
xPole
Type
TR-G2/24
Product description
Bell transformer with separate windings according to EN 61558, surface mounted mounting kit as an accessory (mounting plate), terminal shroud)
Product specifications
Primary voltage
230 V
Secondary voltage 1
12 V
Max. output power
0 W
Max. output current
0 A
Type of transformer
Standard bell ringing transformer
Secondary voltage 2
24 V
Secondary voltage 3
0 V
Secondary amperage 1
2 A
Secondary amperage 2
1 A
Secondary amperage 3
0 A
Max. power loss
0 W
Suitable for distribution board
Yes
Length
55 mm
Width
54 mm
Height
90 mm
Width in number of modular spacings
3
Short-circuit protected
Yes
Temperature protection
Yes
Surface mounting
Yes
Flush-mounted installation
No
With on/off switch
No
