Fieldbus, decentr. periphery - mounting frame Eaton XN
Add to selection
General information
Ordercode YESSS
0509-5904
Product code
140088
EAN code
7640130121133
Product group
Fieldbus, decentr. periphery - mounting frame
Brand
Eaton
Serie
XN
Type

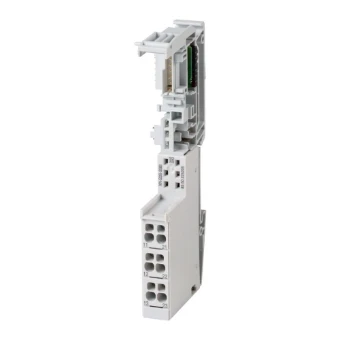

XN-S3S-SBB
Basismodul Scheibe XI/ON, Schraube, 3 Anschlussebenen
Basismodul Scheibe XI/ON, Schraube, 3 Anschlussebenen
Product description
Rack, XI/ON slice card base modules, Connection levels: 3 connection levels, Connection technique: Screw terminals, for Slice module, Degree of Protection: IP20, For use with: XN-2DI-24VDC-P, XN-2DI-24VDC-N, XN-2DI-120/230VAC, XN-1AI-I(0/4...20MA), XN-2AI-I(0/4...20MA), XN-1AI-U(-10/0...+10VDC), XN-2AI-U(-10/0...+10VDC), XN-2AI-PT/NI-2/3, XN-1AO-I(0/4...20MA), XN-2AO-I(0/4...20MA), XN-2AO-U(-10/0...+10VDC), Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2
Product specifications
Input voltage at AC 50 Hz
0 - 0 V
Max. output current AC 50 Hz
0 A
Max. input current AC 50 Hz
0 A
Front built-in possible
No
Type of voltage (input voltage)
DC
Input voltage at AC 60 Hz
0 - 0 V
Input voltage at DC
0 - 0 V
Max. input current AC 60 Hz
0 A
Max. input current DC
0 A
Output voltage at AC 50 Hz
0 - 0 V
Output voltage at AC 60 Hz
0 - 0 V
Output voltage at DC
0 - 0 V
Type of output voltage
DC
Max. output current AC 60 Hz
0 A
Max. output current DC
0 A
With integrated power supply
Yes
System accessory
Yes
Number of slots
1
With pluggable modules, digital I/O
Yes
With pluggable modules, analogue I/O
Yes
With pluggable modules, communication modules
No
With pluggable modules, function and technology modules
No
With pluggable modules, central modules
Yes
With pluggable modules, others
No
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Rack-assembly possible
No
Suitable for safety functions
No
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
12.6 mm
Height
49.9 mm
Depth
117.6 mm
