Wiring band Eaton xEnergy Safety CI
Add to selection
General information
Ordercode YESSS
0539-1211
Product code
119039
EAN code
4015081171767
Product group
Wiring band
Brand
Eaton
Serie
xEnergy Safety CI
Type
CU-BAND10X80X1-BK
CU-Band, 1600A, 10x80x1mm, schwarz
CU-Band, 1600A, 10x80x1mm, schwarz
Product description

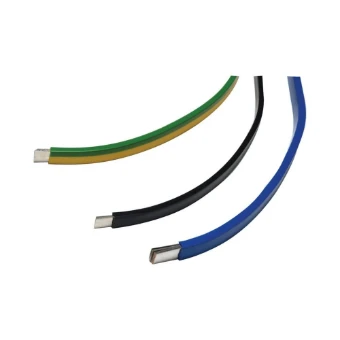

Copper band isolated, laminated conductor E-Cu, tinned, UL approved up to max. 600VAC, insulating material heat resistant up to +105 °C, dimensions (number of layersxwidthxthickness)=10x80x1mm, color black, rated operational current Ie=1600 A, self-extinguishing according to UL 94 V0, insulation resistance to IEC 60243-1 20 kV/mm, rated operating voltage Ue=690VAC
Product specifications
Rated operation current
1600 A
Length
2000 mm
Width
80 mm
Thickness
14 mm
Laminated
Yes
Lamella thickness
1 mm
Number of lamellas
10
