Small distribution board Eaton xEnergy Basic EWK
Add to selection
General information
Ordercode YESSS
0539-0531
Product code
193170
EAN code
9010238008335
Product group
Small distribution board
Brand
Eaton
Serie
xEnergy Basic EWK
Type
EWK-G46/31

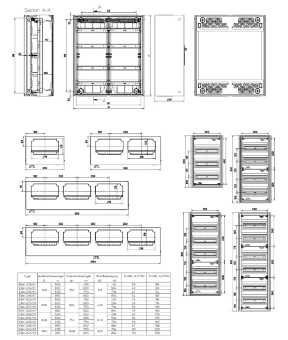

Aufputz-Wandgehäuse EWK komplett, IP31, 288TE, SKII, HxBxT=950x1050x225mm
Aufputz-Wandgehäuse EWK komplett, IP31, 288TE, SKII, HxBxT=950x1050x225mm
Product description
EWK wall-mount enclosure including standard mounting units, 288 SU for modular DIN devices, Plastic protective shroud, Galvanized high-grade steel mounting rails, Compact enclosure dimensions, since the depth is only 230 mm, Rated operational current max. 160A, for direct mounting on the wall, IP31 degree of protection as per standard IEC/EN 62208, Protection class 2, isolation protection, Adjustable hinges for easily changing the door handing, very sturdy, door 2 wing, 1 clip-in, cable entry via F3A-2K flanges (not included) possible, including N-terminal: 4x (6x2.5-16mm² + 21x1.5-4mm²), including PE-terminal: 4x (6x2.5-16mm² + 21x1.5-4mm²), Color: white, RAL 9016
Product specifications
Mounting method
Surface mounted (plaster)
Number of rows
6
Height
950 mm
Type of cover
Door
Width
1050 mm
Cover model
Closed
Depth
230 mm
Transparent cover/door
No
Built-in depth
230 mm
Width in number of modular spacings
48
Material housing
Steel
DIN-rail
Yes
Inner depth
128 mm
With mounting plate
No
Extension possible
Yes
EMC-version
Yes
Colour
White
RAL-number
9016
Degree of protection (IP)
IP31
With lock
No
Type of closure
Other
Built-in height
950 mm
Built-in width
1050 mm
Earthing terminal block
Yes
Neutral terminal block
Yes
Signal passing door
No
Type of door
Double
