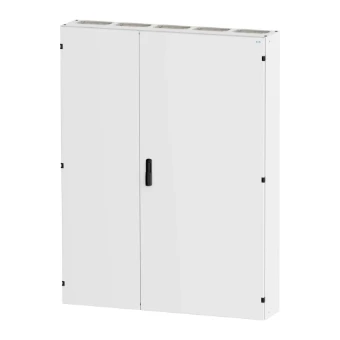

Enclosure/cabinet (empty) Eaton xEnergy Basic EMC2
Add to selection
General information
Ordercode YESSS
6090-9999
Product code
EP-501333
EAN code
9010653042051
Product group
Enclosure/cabinet (empty)
Brand
Eaton
Serie
xEnergy Basic EMC2
Type
EMC2-H511/55-W
placeholder - to be supplied later
placeholder - to be supplied later
Product description
Floor-standing distribution board EP Modular Class 2 (EMC2) empty, IP55, protection class II, HxWxD=1700x1300x270mm, white (RAL 9016), powder-coated sheet metal chassis, total insulated internally to meet class II criterion, prepared for F3A-flanges top/bottom, door with external hinges, 180° opening angle, standard delivery with rotary lever, door gasket foamed all around, intended to be used with EP installation system for interior equipment;
Product specifications
Width
1300 mm
Height
1700 mm
Depth
270 mm
Surface finishing
Powder coating
Material quality
Other
Degree of protection (IP)
IP55
Material
Steel
Colour
White
RAL-number
9016
With mounting plate
No
Mounting plate depth-adjustable
No
Number of locks
0
Suitable for wall built-in
No
Pole fastening
No
Number of doors
2
Pitched roof
No
Suitable for metrical mounting
No
Impact strength
IK10
EMC-version
Yes
With glazed door
No
With ventilation door
No
With rear door
No
Degree of protection (NEMA)
Other
Detached
No
Floor standing wall model
Yes
Suitable for wall mounting
Yes
Corner model
No
Intermediate mounting
No
Connectable
Yes
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
242 W
Max. permissible load of the enclosure according to IEC 62208
2000 N
Max. permissible load of the door(s) according to IEC 62208
100 N
Max. permissible load of the mounting plate according to IEC 62208
880 N
With door
Yes
With cover
No
Transparent cover
No
Number of connector holes
0
Pre-stamping
No
