Residual current circuit breaker (RCCB), 63A, 4p, 30mA, type G/A
- 0509-4121
- |
- 167707
0
piece
in stock
Don’t have an account? Create one
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

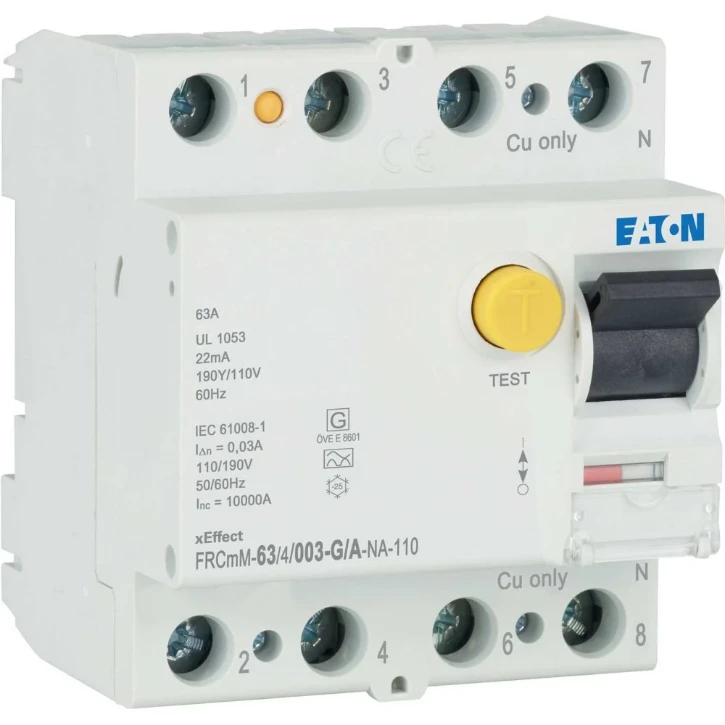

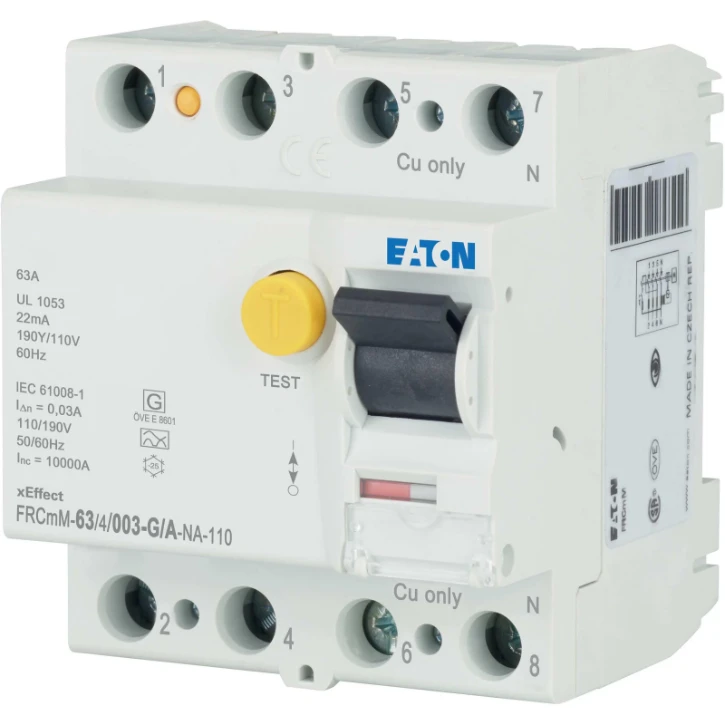

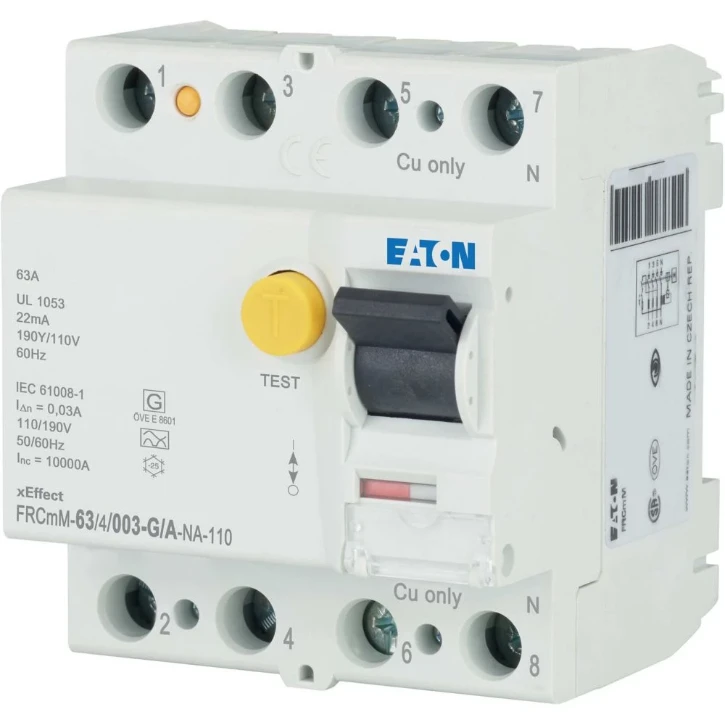

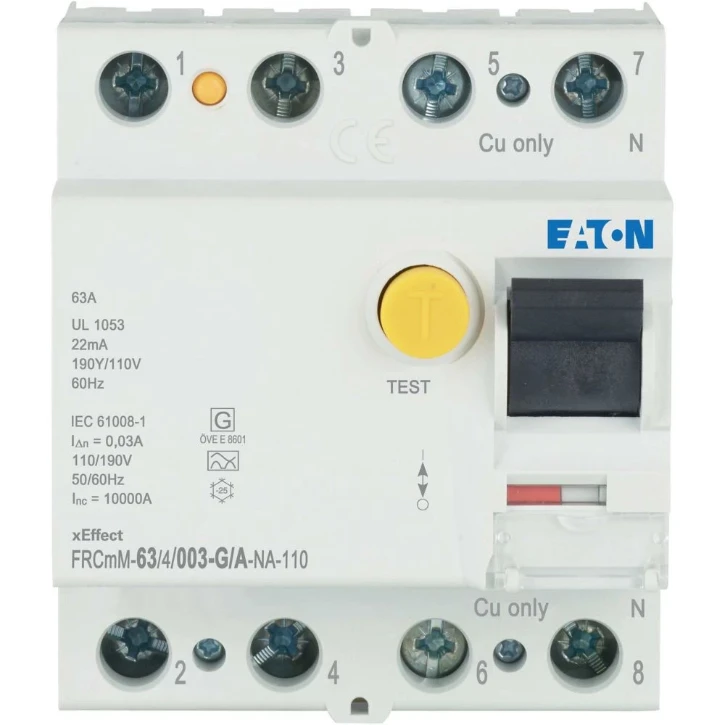

Residual current circuit breaker (RCCB), 63A, 4p, 30mA, type G/A
Residual current circuit breaker (RCCB), 63A, 4p, 30mA, type G/A
Ordercode YESSS
0509-4121
Product code
167707
EAN code
04015081642526
Product group
Residual current circuit breaker (RCCB)
Brand
Eaton
Serie
xEffect
Type
FRCMM-63/4/003-G/A-NA-110
Product description
Residual current circuit-breaker FRCmM-NA-110, 4 pole, Rated current In: 63 A, Rated short-circuit strength Icn: 10 with back-up fuse kA, Rated fault current IΔN: 0.03 A, Switchgear for 110-V systems
Product specifications
Number of poles
4
Rated current
63 A
Rated fault current
0.03 A
Leakage current type
A
Rated voltage
190 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV

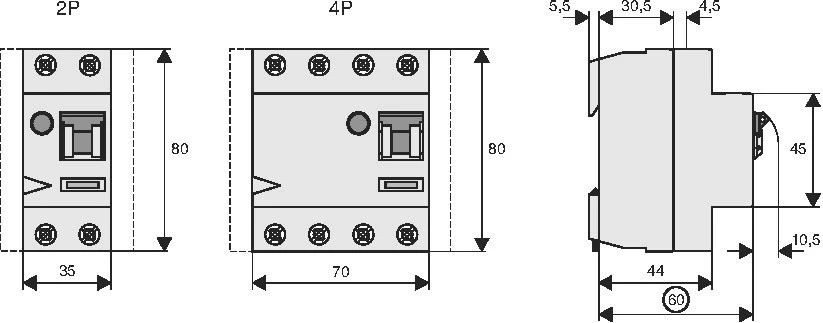

Width in number of modular spacings
4
Selective protection
No
Short-circuit breaking capacity (Icw)
10 kA
Built-in depth
70.5 mm

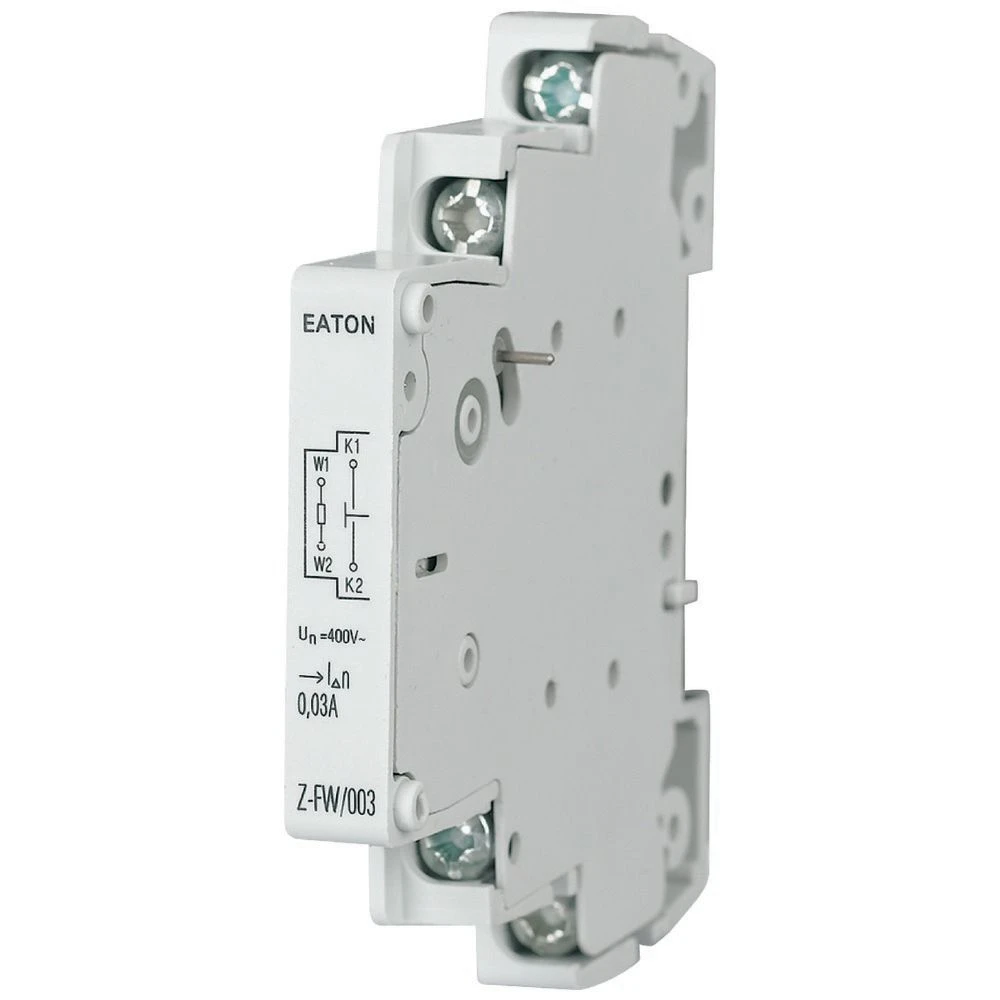

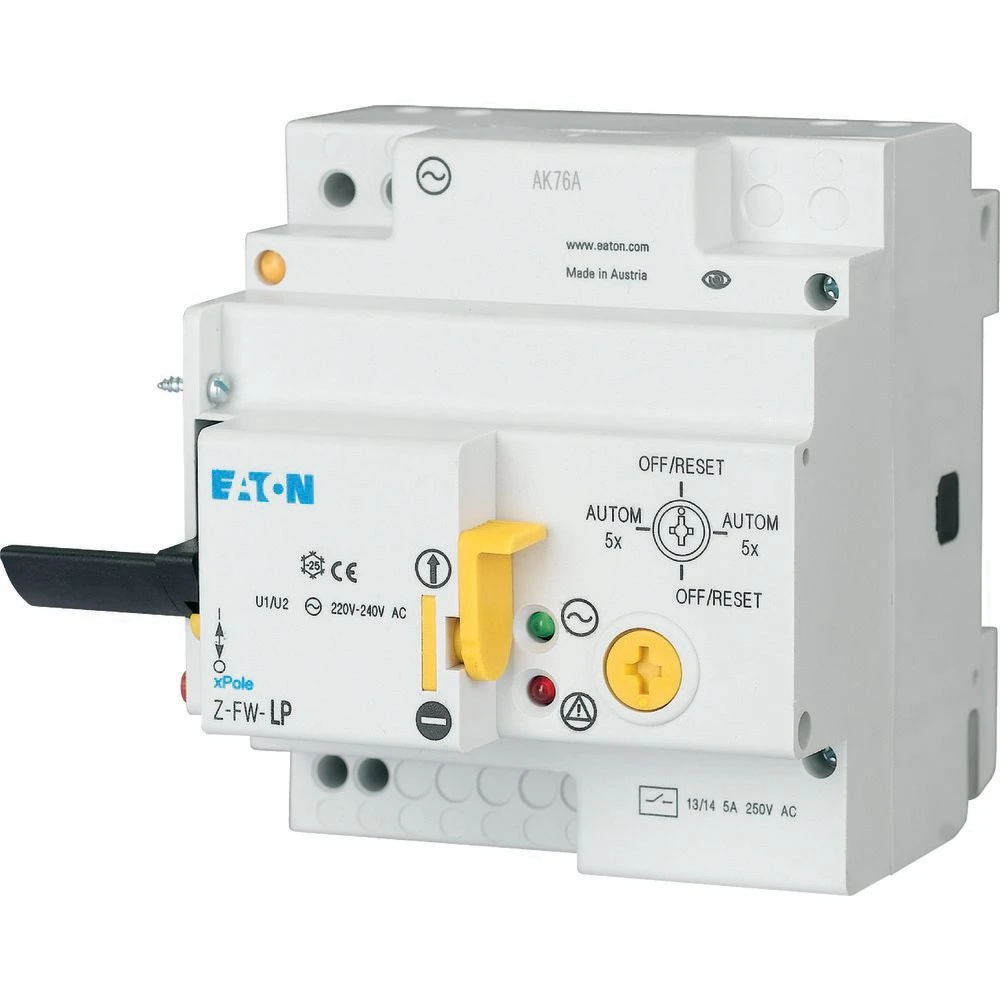

Additional equipment possible
Yes
Mounting method
DIN rail
With interlocking device
Yes
Frequency
50/60 Hz
Surge current capacity
3 kA
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 40 °C
Short-time delayed tripping
No
Pollution degree
2
Connectable conductor cross section multi-wired
1.5 - 16 mm²
Connectable conductor cross section solid-core
1.5 - 35 mm²
Voltage type
AC
Explosion-proof
No
RAL-number (similar)
7035
